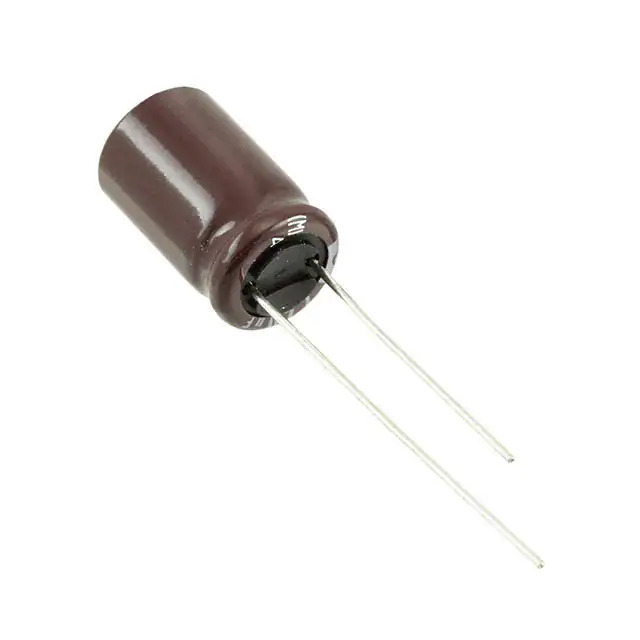

EKZN160ELL102MJ16S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZN160ELL102MJ16S

Part No EKZN160ELL102MJ16S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 16V RADIAL / 1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZN
Package Bulk
Product Status Active
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.2 A @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Impedance 38 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357816-EKZN160ELL102MJ16S
Ultra Librarian 3D Model Ultra Librarian EKZN160ELL102MJ16S CAD Model

Description

The United Chemi-Con KZN series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Series: KZN
  • Manufacturer: United Chemi-Con
  • Capacitance: 1000 µF
  • Voltage - Rated: 16 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 1.2 A @ 120 Hz
  • Ripple Current @ High Frequency: 2 A @ 100 kHz
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.394" (10.00mm)
  • Height - Seated (Max): 0.689" (17.50mm)
  • Lifetime @ Temp.: 10000 hours @ 105°C
