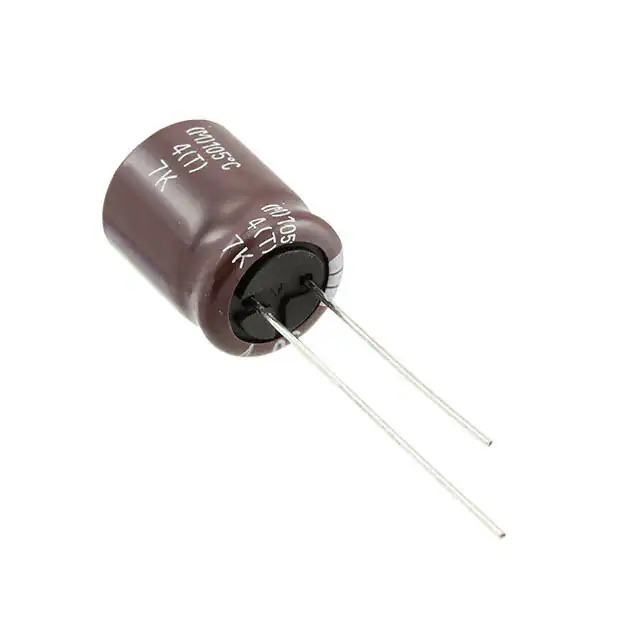

Same model may have multiple batches, images only for reference.
EKZN630ELL271MK16S United Chemi-Con
Same model may have multiple batches, images only for reference.

EKZN630ELL271MK16S

Part No EKZN630ELL271MK16S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 270UF 20% 63V RADIAL / 270 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series KZN
Package Bulk
Product Status Active
Capacitance 270 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 785 mA @ 120 Hz
Ripple Current @ High Frequency 1.57 A @ 100 kHz
Impedance 58 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357968-EKZN630ELL271MK16S
Ultra Librarian 3D Model Ultra Librarian EKZN630ELL271MK16S CAD Model

Description

The United Chemi-Con KZN series is a bulk packaged aluminum electrolytic capacitor.

  • Capacitance: 270 µF
  • Voltage Rating: 63 V
  • Application: General Purpose
  • Temperature Range: -40°C to 105°C
  • Lifetime: 10,000 hours @ 105°C
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Ripple Current @ Low Frequency: 785 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.57 A @ 100 kHz
  • Lead Spacing: 5.00mm
  • Size: 12.50mm in diameter
  • REACH Status: Unaffected
  • ECCN: EAR99
