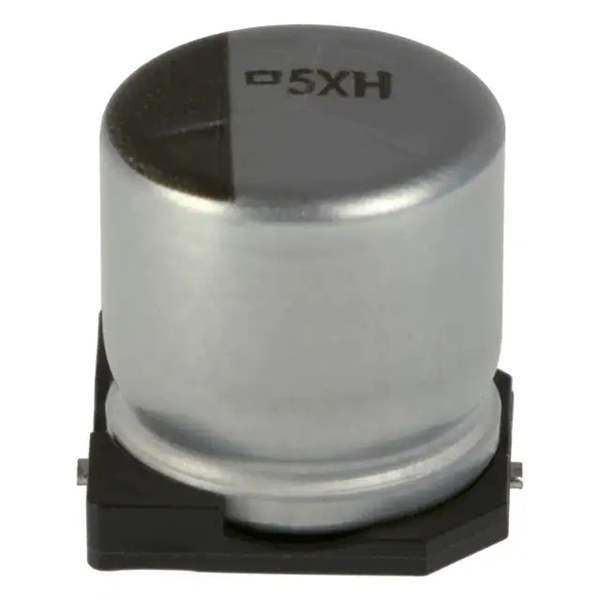

EMVY500ARA221MJA0G

Name: EMVY500ARA221MJA0G
Brand: United Chemi-Con
SKU: 1360299
Availability: InStock
Rating: 4.85 (197 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EMVY500ARA221MJA0G
Manufacturer	United Chemi-Con
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 50V SMD / 220 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	United Chemi-Con
Series	Alchip™- MVY
Package	Tape & Reel
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	250 mA @ 120 Hz
Ripple Current @ High Frequency	500 mA @ 100 kHz
Impedance	300 mOhms
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360299-EMVY500ARA221MJA0G
Ultra Librarian 3D Model	Ultra Librarian EMVY500ARA221MJA0G CAD Model

Alternative Products

Description

The 1360299-EMVY500ARA221MJA0G is an aluminum electrolytic capacitor from United Chemi-Con's Alchip™-MVY series.

Series: Alchip™-MVY
Capacitance: 220 μF
Voltage Rating: 50 V
Operating Temperature: -55°C to 105°C
Application: General-Purpose
Ripple Current (Low Frequency): 250 mA @ 120 Hz
Ripple Current (High Frequency): 500 mA @ 100 kHz
Package: Radial, Can - SMD
Mounting Type: Surface Mount
Size (Diameter): 0.394 inches (10.00 mm)
Height (Max): 0.394 inches (10.00 mm)
Surface Mount Land Size: 0.406 inches L x 0.406 inches W (10.30 mm x 10.30 mm)
Lifetime: 2000 hours @ 105°C
Polarized: Yes
Impedance: 300 mOhms
Product Status: Active
REACH: Unaffected
