Same model may have multiple batches, images only for reference.

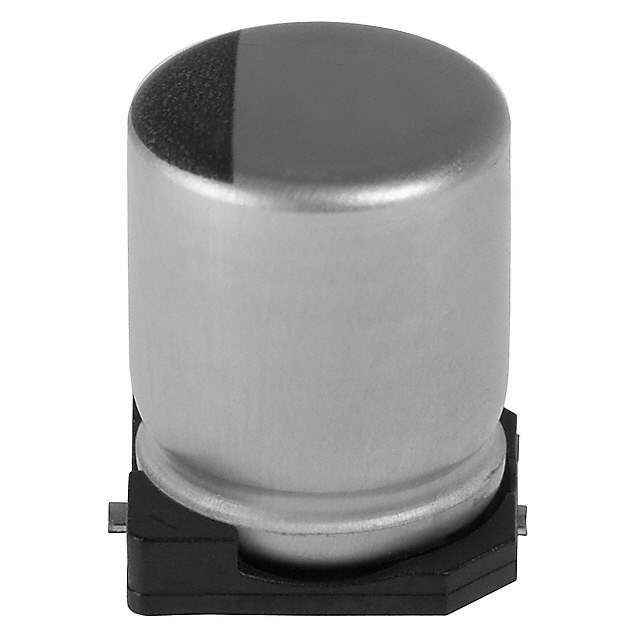

EMZA160ADA471MHA0G Real Image
Same model may have multiple batches, images only for reference.

EMZA160ADA471MHA0G

Part No EMZA160ADA471MHA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Other Names 565-2542-6,565-2542-1,565-2542-2
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1307280-EMZA160ADA471MHA0G
Ultra Librarian 3D Model Ultra Librarian EMZA160ADA471MHA0G CAD Model

Description

The EMZA160ADA471MHA0G is a polarized aluminum electrolytic capacitor from United Chemi-Con. United Chemi-Con

  • Polarization: Polarized
  • Capacitance: 470μF
  • Tolerance: ±20%
  • Rated Voltage: 16V
  • Package: radial, can - SMD
  • Application: Automotive
  • Maximum Height: 0.413 inches
  • Diameter: 0.315 inches
  • Ripple Current (120Hz): 300mA @ 120Hz
  • Ripple Current (100kHz): 600mA @ 100kHz
  • Operating Temperature: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • ECCN: EAR99
  • REACH: Unaffected
