Same model may have multiple batches, images only for reference.

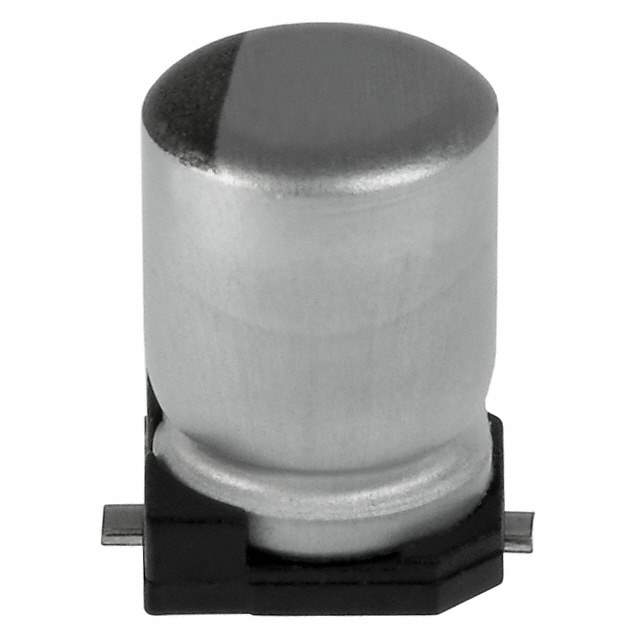

EMZA350ADA4R7MD61G Real Image
Same model may have multiple batches, images only for reference.

EMZA350ADA4R7MD61G

Part No EMZA350ADA4R7MD61G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 4.7UF 20% 35V SMD / 4.7 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZA
Package Tape & Reel
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 31.5 mA @ 120 Hz
Ripple Current @ High Frequency 90 mA @ 100 kHz
Impedance 2.9 Ohms
Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-2553-6,565-2553-1,565-2553-2
Standard Package 2,000
Win Source Part Number 1190884-EMZA350ADA4R7MD61G
Ultra Librarian 3D Model Ultra Librarian EMZA350ADA4R7MD61G CAD Model

Description

The Alchip™-MZA series aluminum electrolytic capacitor is a high-performance component that is ideal for automotive applications.

  • Manufacturer: United Chemi-Con
  • Capacitance: 4.7 µF
  • Voltage Rating: 35 V
  • Operating Temperature Range: -55°C to 105°C
  • Impedance: 2.9 Ohms
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, can-type surface-mount
  • Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Packaging: Tape and Reel
  • Standard Package: 2000
