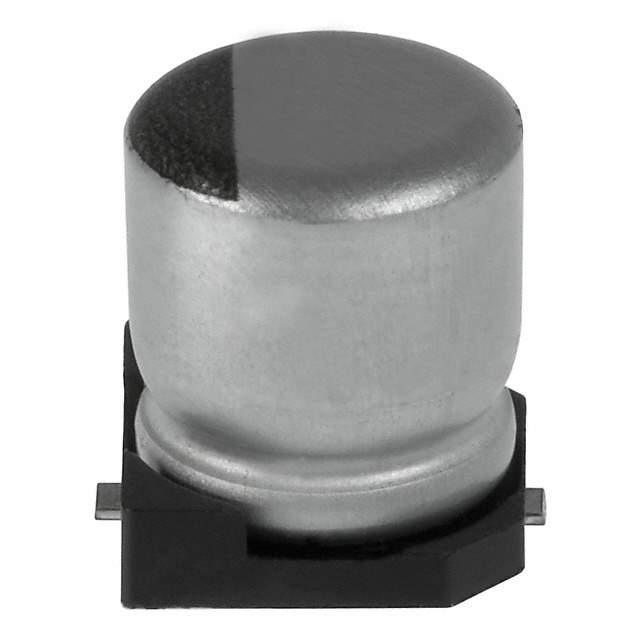

Same model may have multiple batches, images only for reference.

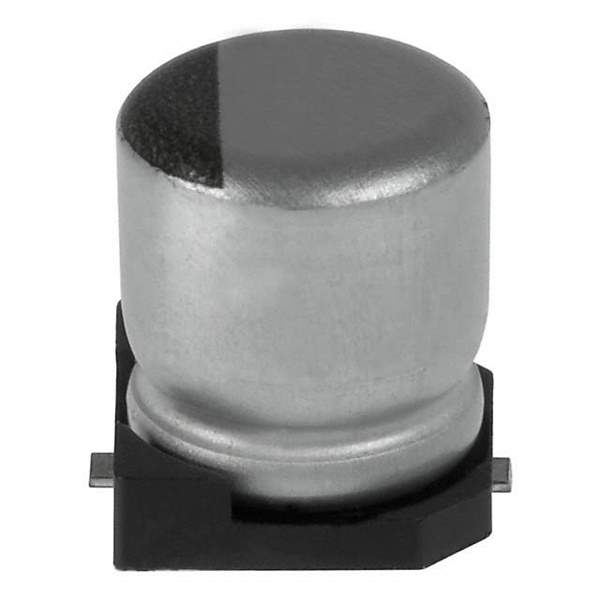

EMZF500ADA470MHA0G Real Image
Same model may have multiple batches, images only for reference.

EMZF500ADA470MHA0G

Part No EMZF500ADA470MHA0G
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD  /  47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series Alchip™- MZF
Package Tape & Reel (TR)
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 350 mA @ 100 kHz
Impedance 530 mOhms
Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 500
Win Source Part Number 1057242-EMZF500ADA470MHA0G
Ultra Librarian 3D Model Ultra Librarian EMZF500ADA470MHA0G CAD Model

Description

This aluminum electrolytic capacitor is part of the Alchip™- MZF series and is manufactured by United Chemi-Con.

  • Series: Alchip™- MZF
  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Application: General-purpose
  • Standard Package: 500 pieces
  • Mounting: Surface Mount
  • Rated Voltage: 50 V
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Ripple Current (Low Frequency): 140 mA @ 120 Hz
  • Ripple Current (High Frequency): 350 mA @ 100 kHz
