Same model may have multiple batches, images only for reference.

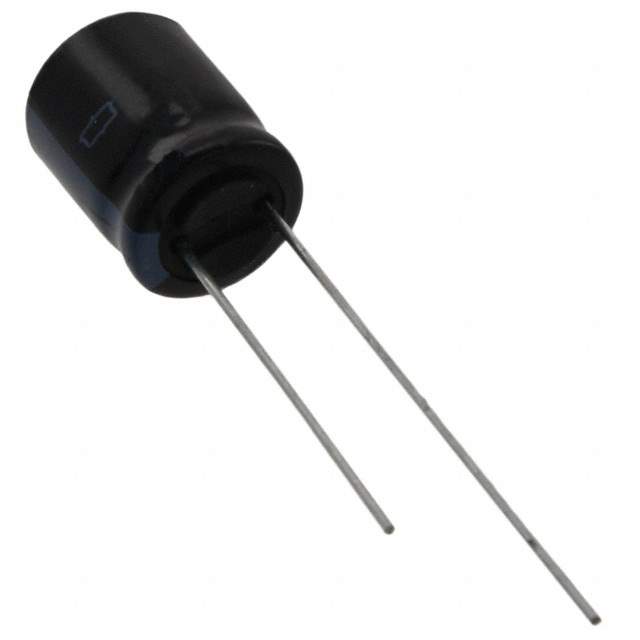

ESMG160ELL102MJ16S Real Image
Same model may have multiple batches, images only for reference.

ESMG160ELL102MJ16S

Part No ESMG160ELL102MJ16S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 1000UF 20% 16V RADIAL  /  1000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMG
Package Bulk
Capacitance 1000 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 785 mA @ 120 Hz
Ripple Current @ High Frequency 1.1775 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 565-1041
Standard Package 2,000
Win Source Part Number 993980-ESMG160ELL102MJ16S
Ultra Librarian 3D Model Ultra Librarian ESMG160ELL102MJ16S CAD Model

Description

The SMG series aluminum electrolytic capacitor from United Chemi-Con is perfect for general purpose applications.

  • Capacitance: 1000 μF
  • Voltage Rating: 16V
  • Tolerance: ±20%
  • Package: radial can
  • Lead Spacing: 0.197" (5.00mm)
  • Height Seated: 0.689" (17.50mm)
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.394" Dia (10.00mm)
  • Ripple Current: 785 mA @ 120 Hz and 1.1775 A @ 100 kHz
  • Supplied: in bulk
  • Standard Package: 2,000 units
  • ECCN: EAR99 compliant
  • REACH: unaffected
