Same model may have multiple batches, images only for reference.

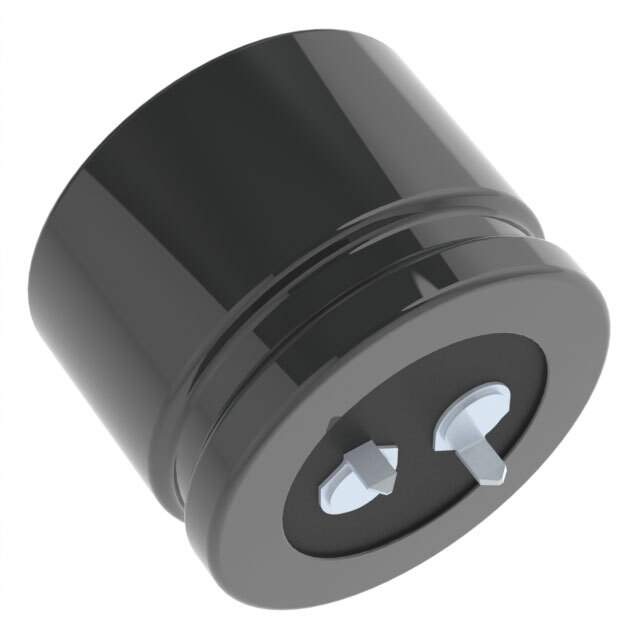

ESMQ451VSN221MA25S Real Image
Same model may have multiple batches, images only for reference.

ESMQ451VSN221MA25S

Part No ESMQ451VSN221MA25S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 450V SNAP / 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series SMQ
Package Bulk
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.55 A @ 120 Hz
Ripple Current @ High Frequency 2.2165 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1340061-ESMQ451VSN221MA25S
Ultra Librarian 3D Model Ultra Librarian ESMQ451VSN221MA25S CAD Model

Description

The United Chemi-Con SMQ series aluminum electrolytic capacitor is a high-quality product designed for general-purpose applications.

  • Manufacturer: United Chemi-Con
  • Product Name: SMQ series
  • Capacitance: 220 µF
  • Voltage Rating: 450 V
  • Package Type: Radial, Can-Snap-In
  • Lead Spacing: 0.394" (10.00mm)
  • Polarization: Polar
  • Temperature Range: -25°C to 85°C
  • Ripple Current (120 Hz): 1.55 A
  • Ripple Current (50 kHz): 2.2165 A
  • Lifetime: 2000 hours @ 85°C
  • Packaging: Bulk
  • Standard Package: 200
