Same model may have multiple batches, images only for reference.

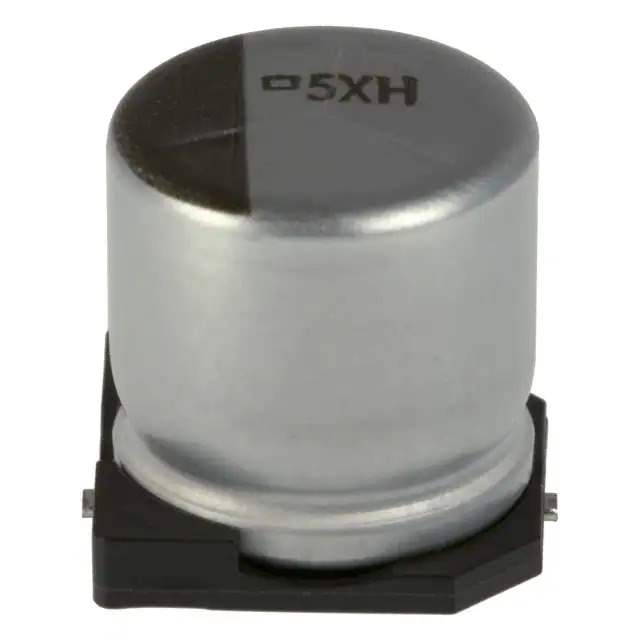

HHXA500ARA101MJA0G Real Image
Same model may have multiple batches, images only for reference.

HHXA500ARA101MJA0G

Part No HHXA500ARA101MJA0G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM HYB 100UF 20% 50V SMD / 100 μF 50 V Aluminum - Polymer Capacitors Radial, Can - SMD 28mOhm 4000 Hrs @ 125°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series HXA
Package Tape & Reel
Product Status Not For New Designs
Type Hybrid
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 28mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 1.6 A @ 100 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.406" (10.30mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 848040-HHXA500ARA101MJA0G
Ultra Librarian 3D Model Ultra Librarian HHXA500ARA101MJA0G CAD Model

Description

The 848040-HHXA500ARA101MJA0G is a hybrid aluminum polymer capacitor from the HXA series by United Chemi-Con.

  • Series: HXA
  • Application: Automotive
  • Package: Radial, Can - SMD
  • Capacitance: 100 µF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • ESR: 28mOhm
  • Ripple Current: 1.6A @ 100 kHz
  • Lifetime: 4000 Hours @ 125°C
  • Temperature Range: -55°C to 125°C
