Same model may have multiple batches, images only for reference.

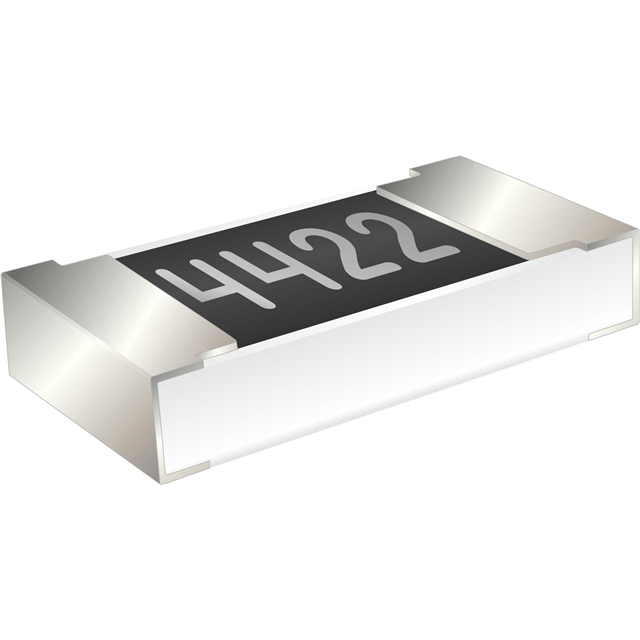

UPTF0603-16W-N-1001DT-1K Real Image
Same model may have multiple batches, images only for reference.

UPTF0603-16W-N-1001DT-1K

Part No UPTF0603-16W-N-1001DT-1K
Manufacturer Venkel
Catalog Chip Resistor - Surface Mount
Description RES 1K OHM 0.5% 1/16W 0603 / 1 kOhms ±0.5% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film
Datasheet
UPTF0603-16W-N-1001DT-1K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Venkel
Series UPTF
Package Tape & Reel (TR)
Resistance 1 kOhms
Tolerance ±0.5%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Temperature Coefficient ±10ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 2679-UPTF0603-16W-N-1001DT-1KTR
Standard Package 1,000
Win Source Part Number 1103396-UPTF0603-16W-N-1001DT-1K
Ultra Librarian 3D Model Ultra Librarian UPTF0603-16W-N-1001DT-1K CAD Model

Description

The Venkel UPTF0603-16W-N-1001DT-1K is a chip resistor with a tolerance of ±0.5% and a temperature coefficient of ±10ppm/°C.

  • Tolerance: ±0.5%
  • Temperature Coefficient: ±10ppm/°C
  • Resistance: 1 kOhms
  • Power: 0.063W, 1/16W
  • Package: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Height: 0.022" (0.55mm) when seated
  • Supplied in: a tape and reel package
  • If you are looking for: a chip resistor with a high tolerance and temperature coefficient, the UPTF0603-16W-N-1001DT-1K may be the right choice for you
