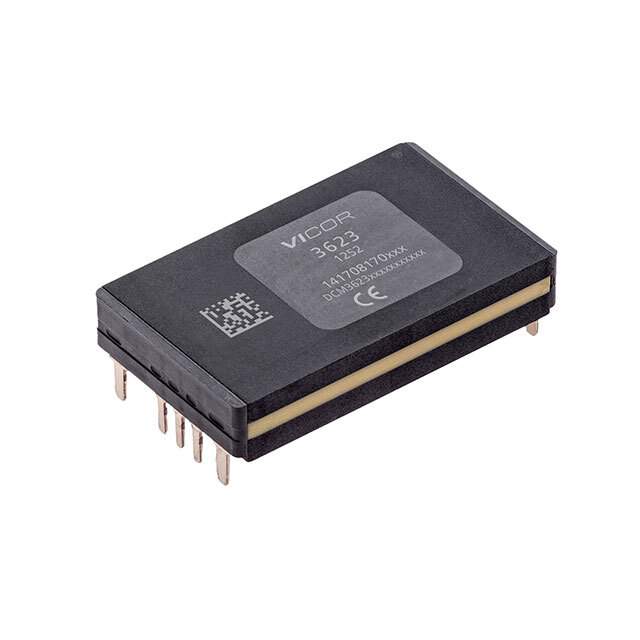

DCM3623T50M31C2M00 Real Image
Same model may have multiple batches, images only for reference.

DCM3623T50M31C2M00

Part No DCM3623T50M31C2M00
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 28V 322W / Isolated Module DC DC Converter 1 Output 28V 11.5A 16V - 50V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Vicor Corporation
Packaging Bulk
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 16V
Voltage - Input (Max) 50V
Voltage - Output 1 28V
Current - Output (Max) 11.5A
Power (Watts) 322 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -55°C ~ 125°C
Efficiency 93.6%
Mounting Through Hole
Case / Package 9-DIP Module
Size / Dimension 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
Base Product Number DCM3623
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 1102-5630
Standard Package 1
Win Source Part Number 1335140-DCM3623T50M31C2M00
Ultra Librarian 3D Model Ultra Librarian DCM3623T50M31C2M00 CAD Model

Description

This electronic component is manufactured by Vicor Corporation and falls under the category of Power Supplies - Board Mount>DC DC Converters.

  • Category: Power Supplies - Board Mount>DC DC Converters
  • Win Source Part Number: 1335140-DCM3623T50M31C2M00
  • Packaging: Bulk
  • Type: Isolated module
  • Features: OCP, OTP, OVP, SCP, UVLO
  • Size/Dimension: 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
  • Application: ITE (Commercial)
  • Package Units: 1
  • Mounting: Through a hole
  • Power: 322 W
  • Voltage Isolation: 2.25 kV
  • Outputs: 1
  • Maximum Current Output: 11.5A
  • Voltage Input: 16V to 50V
  • Voltage Output: 28V
  • Efficiency: 93.6%
  • Operating Temperature: -55°C ~ 125°C
  • Case/Package: 9-DIP Module
  • MSL Level: Not applicable
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.40.9580
  • Other Part Number: 1102-5630
  • Base Product Number: DCM3623
  • ROHS3 Compliant: Yes
