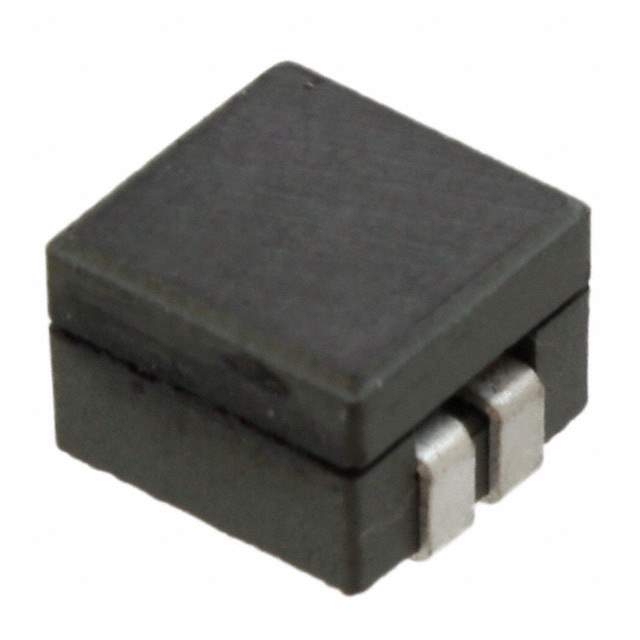

FPT705-230-R Real Image
Same model may have multiple batches, images only for reference.

FPT705-230-R

Part No FPT705-230-R
Manufacturer Vicor Corporation
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Vicor Corporation
Series FLAT-PAC, FPT705
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 230 nH
Tolerance ±10%
Current Rating (Amps) 13 A
Current - Saturation (Isat) 23A
Shielding Shielded
DC Resistance (DCR) 0.65mOhm
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 2727
Dimension 0.283" L x 0.276" W (7.20mm x 7.00mm)
Height - Seated (Max) 0.211" (5.35mm)
Other Names 1102-FPT705-230-RTR,FPT705230R
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272495-FPT705-230-R
Ultra Librarian 3D Model Ultra Librarian FPT705-230-R CAD Model

Description

The FPT705-230-R is a drum core, wirewound fixed inductor from Vicor Corporation, belonging to the FLAT-PAC series.

  • Series: FLAT-PAC
  • Type: Drum Core, Wirewound, Fixed
  • Package: Tape & Reel (TR)
  • Shielding: Yes
  • Inductance: 230nH
  • Tolerance: ±10%
  • Package/Case: Nonstandard
  • DC Resistance (DCR): 0.65mOhm
  • Current Rating (Amps): 13A
  • Current Saturation (Isat): 23A
