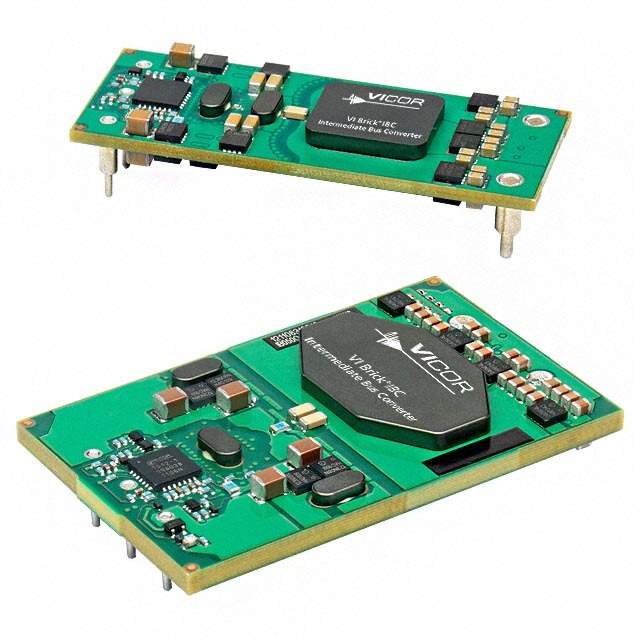

IB048E120T40N1-00 Real Image
Same model may have multiple batches, images only for reference.

IB048E120T40N1-00

Part No IB048E120T40N1-00
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9.5-13.75V 480W / Intermediate Bus Converter DC DC Converter 1 Output 9.5 ~ 13.75V 40A 38V - 55V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Brick® IBC (500W)
Package Tray
Product Status Obsolete
Type Intermediate Bus Converter
Number of Outputs 1
Voltage - Input (Min) 38V
Voltage - Input (Max) 55V
Voltage - Output 1 9.5 ~ 13.75V
Current - Output (Max) 40A
Power (Watts) 480 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, UVLO
Temperature Range - Operating -40°C ~ 125°C
Efficiency 97.4%
Mounting Type Through Hole
Package / Case Eighth Brick
Size / Dimension 2.30" L x 0.90" W x 0.38" H (58.4mm x 22.9mm x 9.7mm)
Standard Package 6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1339091-IB048E120T40N1-00
Ultra Librarian 3D Model Ultra Librarian IB048E120T40N1-00 CAD Model

Description

The VI Brick IBC (500W) intermediate bus converter is a highly efficient and reliable power supply solution designed for ITE (Commercial) applications.

  • Features: remote On/Off and UVLO
  • Power Output: 480W
  • Voltage Isolation: 1.5kV
  • Output Current: 40A
  • Efficiency: 97.4%
  • Input Voltage: 38V to 55V
  • Package: eighth brick
  • Mounting: through hole
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Vicor Corporation
  • Status: obsolete
