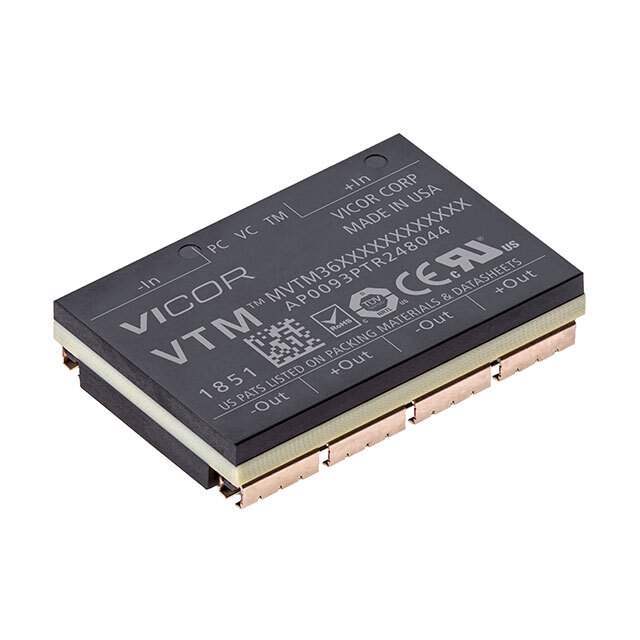

MVTM36BF240M005A00 Vicor Corporation
Same model may have multiple batches, images only for reference.

MVTM36BF240M005A00

Part No MVTM36BF240M005A00
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 24V 150W
Datasheet
MVTM36BF240M005A00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308887-MVTM36BF240M005A00
Category Power Supplies - Board Mount -DC DC Converters
Mfr Vicor Corporation
Packaging Tray
Part Status Active
Type Voltage Transformation Module
Number of Outputs 1
Voltage - Input (Min) 26V
Voltage - Input (Max) 50V
Voltage - Output 1 24V
Current - Output (Max) 5A
Ultra Librarian 3D Model Ultra Librarian MVTM36BF240M005A00 CAD Model

Description

The VI Chip® current multiplier is a high‑efficiency Sine Amplitude Converter™ (SAC™) operating from a 26 to 50VDC primary bus to deliver an isolated output. The Sine Amplitude Converter offers a low AC impedance beyond the bandwidth of most downstream regulators, which means that capacitance normally at the load can be located at the input to the Sine Amplitude Converter. This allows for a reduction in point‑of‑load capacitance of typically >100x which results in a saving of board area, materials and total system cost.
