Same model may have multiple batches, images only for reference.

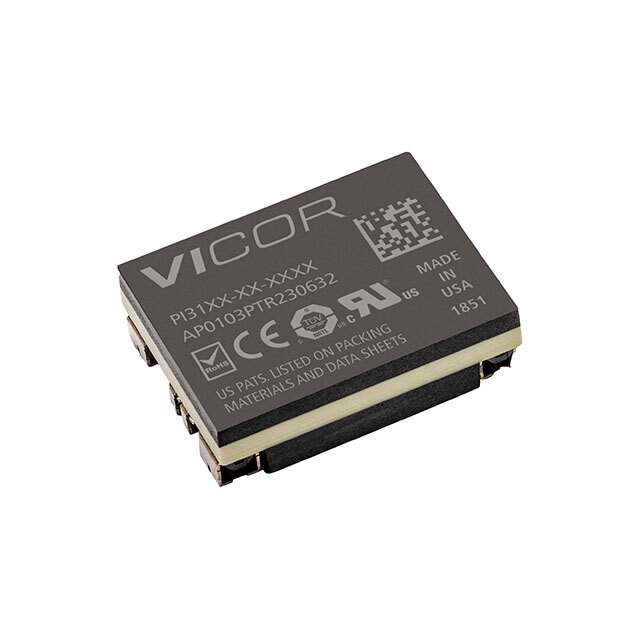

PI3111-00-HVMZ Real Image
Same model may have multiple batches, images only for reference.

PI3111-00-HVMZ

Part No PI3111-00-HVMZ
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 50W / Isolated Module DC DC Converter 1 Output 15V 3.3A 16V - 50V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Vicor Corporation
Package Tray
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 16V
Voltage - Input (Max) 50V
Voltage - Output 1 15V
Current - Output (Max) 3.3A
Power (Watts) 50 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -55°C ~ 125°C
Efficiency 87.5%
Mounting SMD (SMT)
Package / Case 8-SMD Module
Dimension 0.87" L x 0.65" W x 0.26" H (22.0mm x 16.5mm x 6.7mm)
Base Product Number PI3111
Other Names 1102-5327
Standard Package 1
MSL Level 6 (Time on Label)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1237362-PI3111-00-HVMZ
Ultra Librarian 3D Model Ultra Librarian PI3111-00-HVMZ CAD Model

Description

The PI3111-00-HVMZ is a DC-DC converter module manufactured by Vicor Corporation.

  • Type: Isolated Module
  • Voltage Isolation: 2.25kV
  • Current - Output (Max): 3.3A
  • Power: 50W
  • Remote On/Off: Yes
  • Features: OCP, OTP, OVP, and UVLO
  • Package: Tray
  • Mounting Type: Surface Mountable
  • Voltage - Input: 16V to 50V
  • Voltage - Output: 15V (Fixed)
  • Efficiency: 87.5%
  • Package/Case: 8-SMD module
  • Dimensions: 0.87" L x 0.65" W x 0.26" H
  • Operating Temperature: -55°C to 125°C
