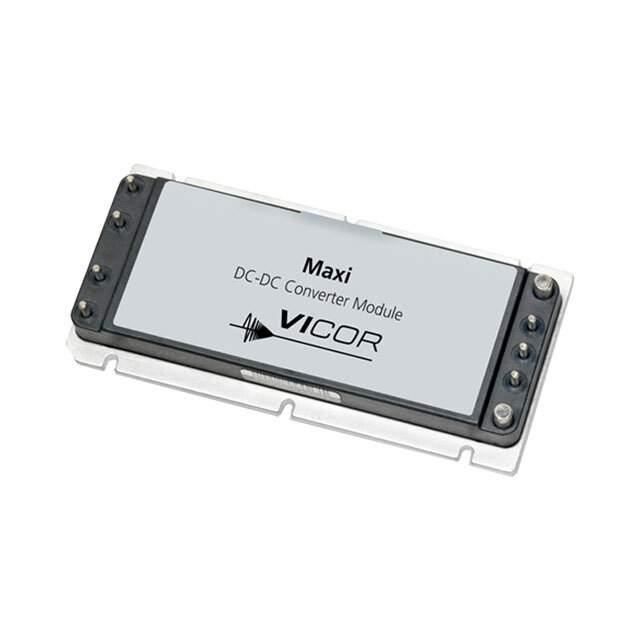

Same model may have multiple batches, images only for reference.

V300A24C500BL

Name: V300A24C500BL
Brand: Vicor Corporation
SKU: 798978
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	V300A24C500BL
Manufacturer	Vicor Corporation
Catalog	Power Supplies Board Mount DCDC Converters
Description	CONVERTER MOD DC/DC 24V 500W / Module DC-DC 300VIN 1-OUT 24V 20.8A 500W Medical 9-Pin Brick
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Power Supplies - Board Mount
Manufacturer	Vicor Corporation
Series	Maxi
Packaging	Bulk
Type	Isolated Module
Number of Outputs	1
Input Voltage MIN	180V
Voltage Input MAX	375V
Voltage - Output 1	24V
Current - Output (Maximum)	20.83A
Power (Watts)	500W
Voltage - Isolation	3kV (3000V)
Applications	ITE (Commercial)
Features	OVP, UVLO
Operating Temperature Range	-20°C ~ 100°C
Efficiency	89%
Mounting Style	Through Hole
Package	Full Brick
Dimension	4.60" L x 2.20" W x 0.62" H (116.8mm x 55.9mm x 15.7mm)
Win Source Part Number	798978-V300A24C500BL
Popularity	Medium
Supply and Demand Status	Limited
Family Name	V300A24C500B
Introduction Date	February 07, 2005
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian V300A24C500BL CAD Model

Alternative Products

Description

The Vicor Corporation V300A24C500BL is an isolated module manufactured by Vicor Corporation.

Series: Maxi
Application: ITE (Commercial)
Package Type: Full Brick
Power Output: 500W
Efficiency: 89%
Voltage Isolation: 3kV (3000V)
Output Voltage: 24V
Operating Temperature Range: -20°C to 100°C
Features: OVP, UVLO
Dimensions: 4.60" L x 2.20" W x 0.62" H (116.8mm x 55.9mm x 15.7mm)
Input Voltage Range: 180V to 375V
Maximum Output Current: 20.83A
Category: Power Supplies - Board Mount
Cross-Reference: VDZ460-D300-S24M, VDZ460-D300-S24MM, VDZ400-D300-S24M, VDZ400-D300-S24MM
Estimated EOL Date: 2027
