Same model may have multiple batches, images only for reference.

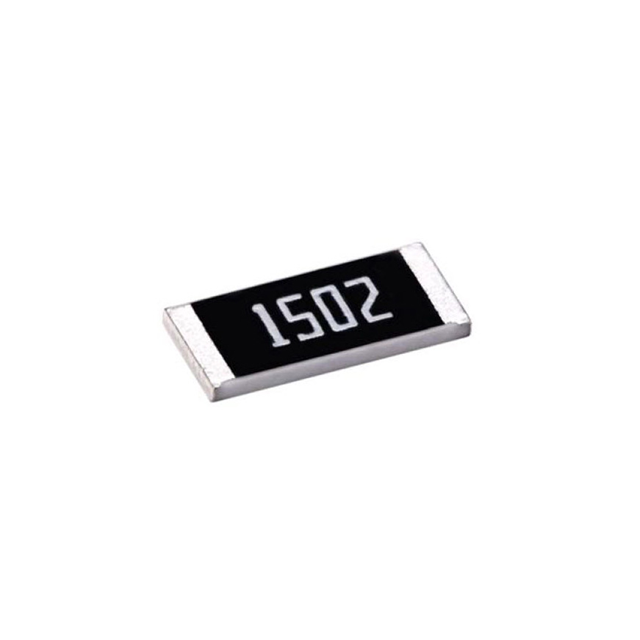

CR-03JL7---24R Real Image
Same model may have multiple batches, images only for reference.

CR-03JL7---24R

Part No CR-03JL7---24R
Manufacturer Viking Tech
Catalog Chip Resistor - Surface Mount
Description RES 24 OHM 5% 1/10W 0603 / 24 Ohms ±5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Thick Film
Datasheet
CR-03JL7---24R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Viking Tech
Series CR
Package Tape & Reel (TR)
Resistance 24 Ohms
Tolerance ±5%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 5833.40.0000
Other Names 2577-CR-03JL7---24RTR
Standard Package 5,000
Win Source Part Number 971650-CR-03JL7---24R
Ultra Librarian 3D Model Ultra Librarian CR-03JL7---24R CAD Model

Description

The CR chip resistor is a surface mount resistor offered in a tape and reel package with 5,000 units.

  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Power: 0.1W, 1/10W
  • Composition: thick film
  • Number of Terminations: 2
  • Resistance: 24 Ohms
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: 0603
  • Operating Temperature Range: -55°C to 155°C
  • Dimension: 0.063" L x 0.031" W (1.60mm x 0.80mm)
  • MSL Level: 1 (unlimited)
  • HTSUS: 5833.40.0000
  • Manufacturer: Viking Tech
  • Other Names: 2577-CR-03JL7---24RTR
