Same model may have multiple batches, images only for reference.

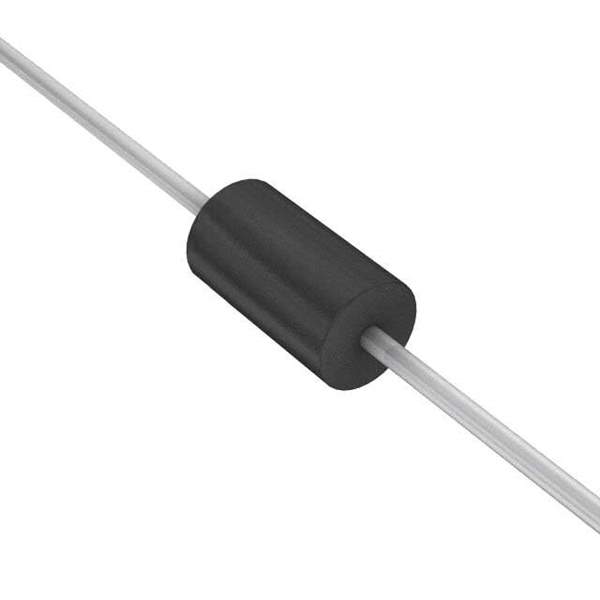

1.5KE22CA-E3/73 Real Image
Same model may have multiple batches, images only for reference.

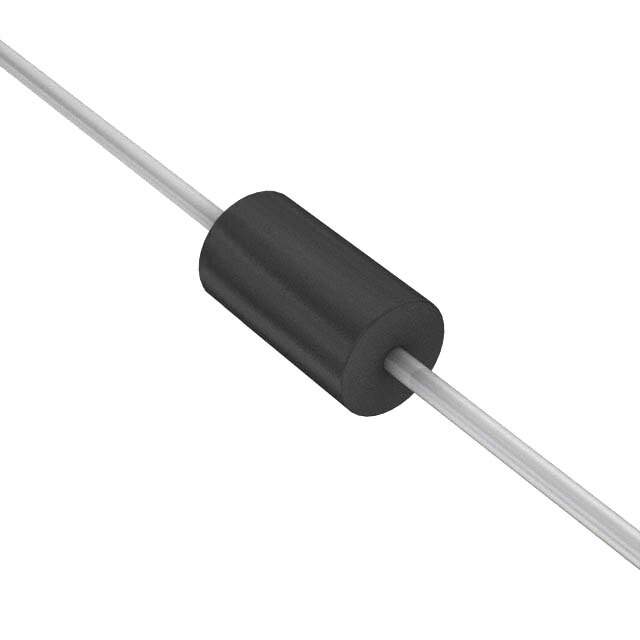

1.5KE22CA-E3/73

Part No 1.5KE22CA-E3/73
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 18.8VWM 30.6VC 1.5KE
Datasheet
1.5KE22CA-E3/73 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Vishay
Packaging AMMO PACKAGE
Status Active
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 18.8V
Minimum Breakdown Voltage 20.9V
Max Clamping Voltage 30.6V
Peak Pulse Current(Ippm) 49A
Power Dissipation - Pd 1500W (1.5kW)
Applications General Purpose
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package 1.5KE
Win Source Part Number 1000498-1.5KE22CA-E3/73
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Automotive, Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Lighting, Sensing & Instrumentation, Industrial
Ultra Librarian 3D Model Ultra Librarian 1.5KE22CA-E3/73 CAD Model

Description

The Vishay 1.5KE22CA-E3/73 is a high-quality zener diode designed for general-purpose applications.

  • Package: 1.5KE
  • Packaging: Ammo Pack
  • Stand-Off Voltage (Vwm): 18.8V
  • Minimum Breakdown Voltage: 20.9V
  • Max Clamping Voltage: 30.6V
  • Peak Pulse Current(Ippm): 49A
  • Power Dissipation: 1500W (1.5kW)
  • Operating Temperature: -55°C to 175°C (TJ)
