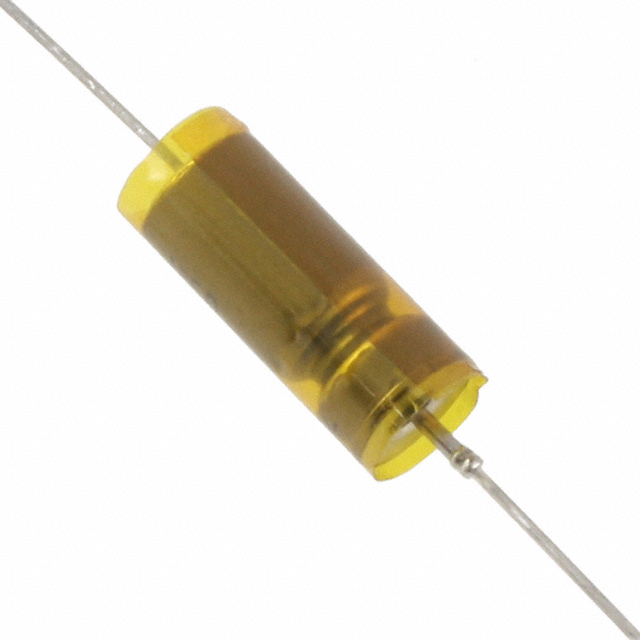

109D336X0015C2

Part No 109D336X0015C2
Manufacturer Vishay
Catalog Tantalum Capacitors
Description 109D336X0015C2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 15 V
Type Elastomer Sealed
ESR (Equivalent Series Resistance) 5Ohm @ 120Hz
Temperature Range - Operating -55°C ~ 125°C
Lifetime @ Temp. 2000 Hrs @ 85°C
Mounting Type Through Hole
Case / Package Axial
Size / Dimension 0.219" Dia x 0.608" L (5.56mm x 15.45mm)
Manufacturer Size Code C
Features Wet Tantalum
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1526974-109D336X0015C2
Ultra Librarian 3D Model Ultra Librarian 109D336X0015C2 CAD Model
