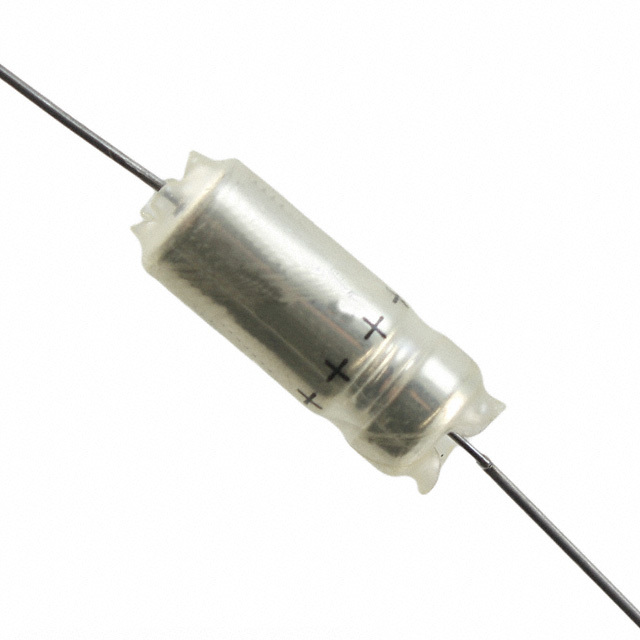

109D566X9075F2

Part No 109D566X9075F2
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 56UF 10% 75V AXIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 56 µF
Tolerance ±10%
Voltage - Rated 75 V
Type Elastomer Sealed
ESR (Equivalent Series Resistance) 3Ohm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Case / Package Axial
Size / Dimension 0.312" Dia x 0.796" L (7.92mm x 20.22mm)
Manufacturer Size Code F
Features Wet Tantalum
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1526979-109D566X9075F2
Ultra Librarian 3D Model Ultra Librarian 109D566X9075F2 CAD Model
