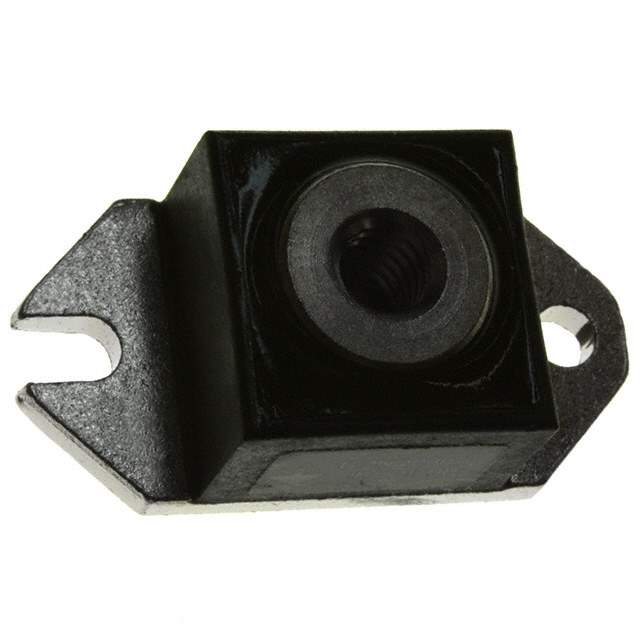

123NQ100 Real Image
Same model may have multiple batches, images only for reference.

123NQ100

Part No 123NQ100
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY RECTIFIER | DIODE SCHOTTKY 100V 120A D-67
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 100V
Current - Average Rectified (Io) 120A
Voltage - Forward (Vf) (Maximum) at If 910mV at 120A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 3mA at 100V
Capacitance at Vr, F 2650pF at 5V, 1MHz
Mounting Style Chassis Mount
Manufacturer Package D-67 HALF-PAK
Supplier Device Package D-67
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1121180-123NQ100
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 123NQ100 CAD Model

Description

The Vishay Semiconductor Diodes Division Schottky diode, with a maximum reverse voltage of 100V and forward voltage of 910mV @ 120A, is an excellent choice for high-power rectification applications.

  • Maximum Reverse Voltage: 100V
  • Forward Voltage: 910mV @ 120A
  • Recovery Speed: 200mA (Io)
  • Average Rectified Current: 120A
  • Package: D-67 HALF-PAK
  • Mounting Type: Chassis Mount
  • Supplied: Bulk
  • Capacitance: 2650pF @ 5V and 1MHz
  • Reverse Leakage Current: 3mA @ 100V
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Manufacturer's Website: www.irf.com
