Same model may have multiple batches, images only for reference.

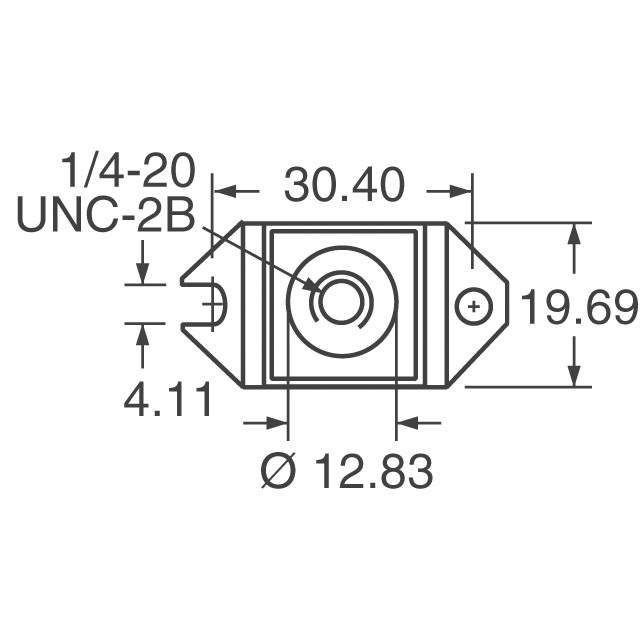

125NQ015R Real Image
Same model may have multiple batches, images only for reference.

125NQ015R

Part No 125NQ015R
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY RECTIFIER | DIODE SCHOTTKY 15V 120A D-67
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 15V
Current - Average Rectified (Io) 120A
Voltage - Forward (Vf) (Maximum) at If 390mV at 120A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 40mA at 15V
Capacitance at Vr, F 7700pF at 5V, 1MHz
Mounting Style Chassis Mount
Manufacturer Package D-67 HALF-PAK
Supplier Device Package D-67
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1121192-125NQ015R
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 125NQ015R CAD Model

Description

The 1121192-125NQ015R is a Schottky diode with a maximum forward voltage of 390mV at 120A and a reverse leakage current of 40mA at 15V.

  • Maximum Forward Voltage: 390mV @ 120A
  • Reverse Leakage Current: 40mA @ 15V
  • Recovery Speed: 200mA (Io)
  • Average Rectified Current: 120A
  • Mounting Type: Chassis Mount
  • Package: D-67 HALF-PAK
  • Reverse Voltage: 15V
  • Category: Discrete Semiconductor Products
  • Status: Obsolete
  • Package Quantity: 20
  • MSL Level: 1 (Unlimited)
