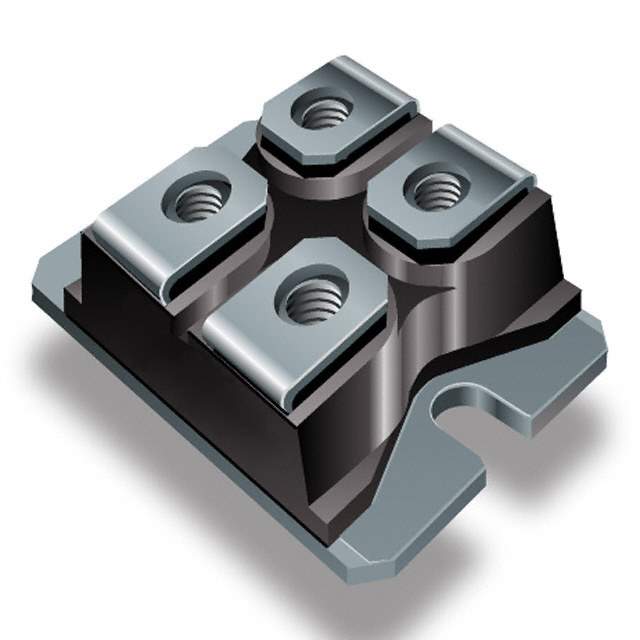

VS-GB75SA120UP Real Image
Same model may have multiple batches, images only for reference.

VS-GB75SA120UP

Part No VS-GB75SA120UP
Manufacturer Vishay
Catalog IGBTs - Modules
Description MODULE IGBT SOT-227 / Trans IGBT Module
Datasheet
VS-GB75SA120UP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Part Status Obsolete(EOL)
IGBT Type NPT
Configuration Single
Voltage - Collector Emitter Breakdown (Maximum) 1200V
Power - Max 658W
Vce(on) (Maximum) @ Vge, Ic 3.8V @ 15V, 75A
Current - Collector Cutoff (Maximum) 250μA
Input Standard
NTC Thermistor No
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package SOT-227-4, miniBLOC
Manufacturer Package SOT-227
Win Source Part Number 774979-VS-GB75SA120UP
Popularity Medium
Supply and Demand Status Limited
Introduction Date January 01, 2000
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian VS-GB75SA120UP CAD Model

Description

The Vishay Semiconductor Diodes Division VS-GB75SA120UP is an NPT IGBT type from Vishay Semiconductor Diodes Division.

  • Maximum Power: 658W
  • Collector Cutoff: 250μA
  • Voltage: 1200V
  • Vce(on): 3.8V @ 15V, 75A
  • Configuration: Single
  • Package: SOT-227-4, miniBLOC
  • Junction Temperature Range: -40°C to 150°C
  • Category: Discrete Semiconductor Products
  • Packaging: SOT-227
  • Supply and Demand Status: Limited
