The NESG260234-T1 is a GaAs HJ-FET manufactured by NEC (now Renesas Electronics). It is designed for low noise amplification in various RF and microwave applications. This discrete transistor offers excellent gain and noise figure performance at high frequencies.

Applications:

• LNA (Low Noise Amplifier) for communication systems
• GPS Receivers
• Satellite Receivers
• Wireless LAN
• Instrumentation Amplifiers

Features:

• High Gain: Typically 12 dB at 12 GHz
• Low Noise Figure: Typically 1.3 dB at 12 GHz
• High Maximum Stable Gain
• Surface Mount Package
• High Cutoff Frequency

Benefits:

• Improved Receiver Sensitivity: The low noise figure allows for the detection of weaker signals.
• Extended Communication Range: Higher gain boosts signal strength, enabling longer-distance communication.
• Reduced System Noise: Minimizing noise improves the overall signal-to-noise ratio of the system.
• Compact Design: Surface mount package allows for miniaturization of electronic devices.
• Stable Performance: Offers reliable and consistent performance across various operating conditions.

Additional Details:

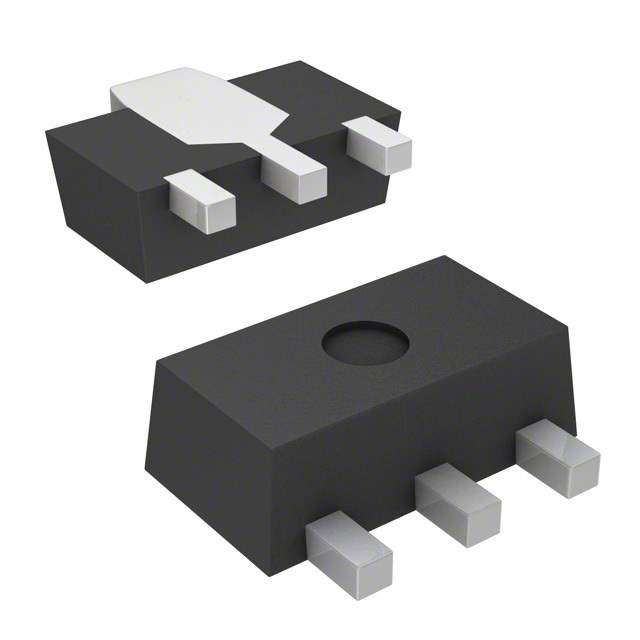

The NESG260234-T1 is typically used in the first stage of a receiver to amplify the incoming signal while adding minimal noise. Its superior performance characteristics make it suitable for demanding applications where signal integrity is crucial. The device is housed in a small surface mount package, simplifying assembly and enabling high-density circuit designs. Its high cutoff frequency makes it suitable for applications operating well into the microwave range. The device is sensitive to electrostatic discharge (ESD) and appropriate handling precautions are required.
