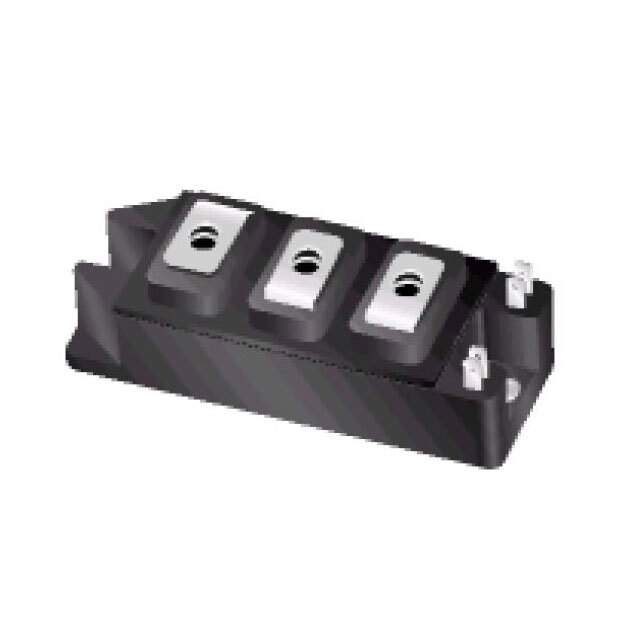

FMG2G150US60E Real Image
Same model may have multiple batches, images only for reference.

FMG2G150US60E

Part No FMG2G150US60E
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Modules
Description Molding Type Module
Datasheet
FMG2G150US60E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Part Status Obsolete(EOL)
Configuration Half Bridge
Voltage - Collector Emitter Breakdown (Maximum) 600V
Current - Collector (Ic) (Maximum) 150A
Power - Max 500W
Vce(on) (Maximum) @ Vge, Ic 2.8V @ 15V, 150A
Current - Collector Cutoff (Maximum) 250μA
Input Capacitance (Cies) @ Vce 12.84nF @ 30V
Input Standard
NTC Thermistor No
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Chassis Mount
Package 7PM-GA
Manufacturer Package 7PM-GA
Win Source Part Number 1174740-FMG2G150US60E
Manufacturer Homepage www.fairchildsemi.com
Family Name FMG2G150US60E
Introduction Date May 08, 2002
ECCN EAR99
Estimated EOL Date Obsolete
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FMG2G150US60E CAD Model

Description

The FMG2G150US60E is a power module manufactured by Fairchild/ON Semiconductor.

  • Maximum Power: 500W
  • Configuration: Half bridge
  • Input Capacitance: 12.84nF @ 30V
  • Maximum Collector Current: 150A
  • Maximum Collector-Emitter Voltage: 600V
