Same model may have multiple batches, images only for reference.

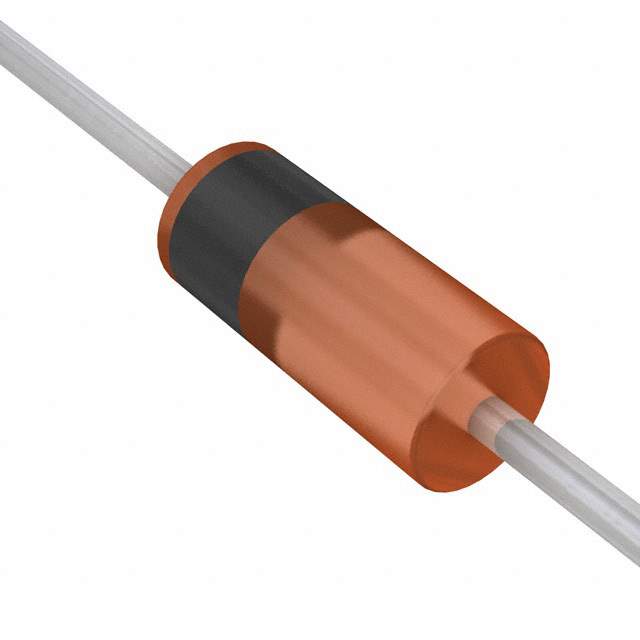

1N4151TR Real Image
Same model may have multiple batches, images only for reference.

1N4151TR

Part No 1N4151TR
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 75V 150MA DO35
Datasheet
1N4151TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 1V @ 50mA
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 50nA @ 50V
Capacitance @ Vr, F 2pF @ 0V, 1MHz
Mounting Through Hole
Case / Package DO-35
Operating Temperature - Junction 175°C (Max)
Win Source Part Number 1002103-1N4151TR
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 1N4151TR CAD Model

Description

The Vishay 1002103-1N4151TR is a through-hole mounted standard diode with a voltage rating of 75V and an average rectified current of 150mA.

  • Voltage Rating: 75V
  • Average Rectified Current: 150mA
  • Forward Voltage: 1V @ 50mA
  • Reverse Leakage Current: 50nA @ 50V
  • Reverse Recovery Time (trr): 4ns
  • Capacitance @ Vr, F: 2pF @ 0V, 1MHz
  • Category: Discrete Semiconductor Products
  • Status: Active
  • Maximum Junction Temperature: 175°C
  • Package: DO-35
  • Supply and Demand Status: Sufficient
