Same model may have multiple batches, images only for reference.

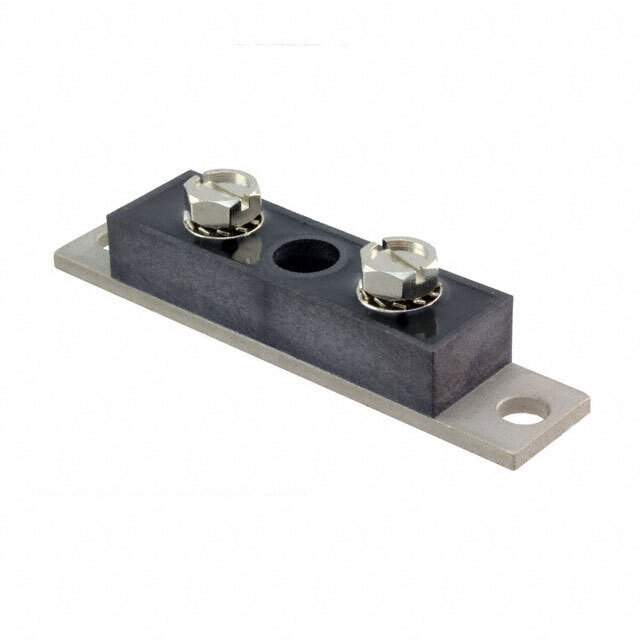

220CNQ030 Real Image
Same model may have multiple batches, images only for reference.

220CNQ030

Part No 220CNQ030
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE MODULE 30V 220A TO244AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 220A
Voltage - Forward (Vf) (Maximum) at If 570mV at 220A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 10mA at 30V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style Chassis Mount
Manufacturer Package TO-244AB
Supplier Device Package TO-244AB
Manufacturer Pack Quantity 30
MSL Level 1 (Unlimited)
Win Source Part Number 1123040-220CNQ030
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 220CNQ030 CAD Model

Description

The Vishay 1123040-220CNQ030 is a Schottky diode with a maximum voltage reverse of 30V and an average rectified current of 220A per diode.

  • Voltage Forward: 570mV @ 220A
  • Current Reverse Leakage: 10mA @ 30V
  • Package: TO-244AB
  • Suitable for: Applications such as power supplies, battery chargers, and DC-DC converters.
