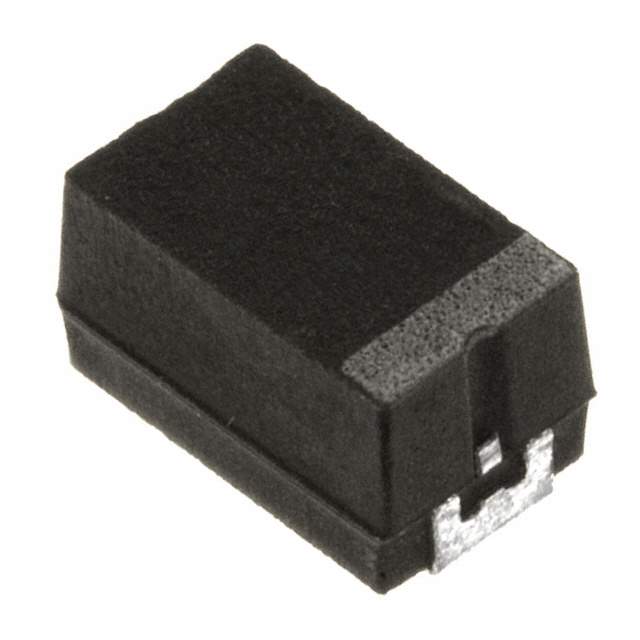

293D226X0035E2TE3 Real Image
Same model may have multiple batches, images only for reference.

293D226X0035E2TE3

Part No 293D226X0035E2TE3
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 35V 20% 2917
Datasheet
293D226X0035E2TE3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 35V
Type Molded
ESR 600 mOhm
Temperature Range - Operating -55°C to 125°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.170" (4.32mm)
Manufacturer Size Code E
Features General Purpose
Win Source Part Number 056978-293D226X0035E2TE3
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 293D226X0035E2TE3 CAD Model

Description

Product Description

The 293D226X0035E2TE3 tantalum capacitor is optimized for high-performance electronics, offering high capacitance and voltage ratings to support advanced applications.

Applications

  • Advanced computing systems
  • Wireless communication modules
  • Military electronics
  • Transportation systems
  • Renewable energy solutions

Features and Benefits

  • High Capacitance: Delivers 22μF for effective energy storage and noise reduction.
  • Voltage Rating: Operates at up to 35V, designed for high-power applications.
  • Robust Construction: Ensures long-term reliability even under stress.
  • Compact Design: Facilitates easy integration into dense circuit boards.

Additional Details

This capacitor meets rigorous industry standards, ensuring environmental safety and high performance. It is RoHS compliant and manufactured with a focus on sustainability.
