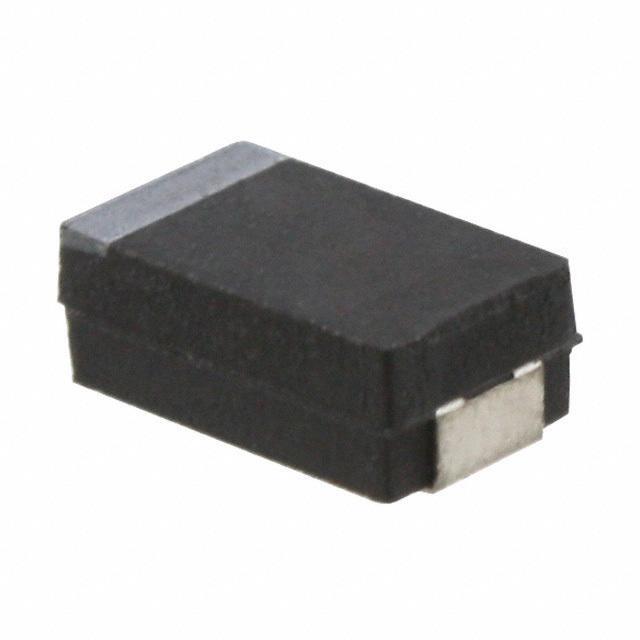

Same model may have multiple batches, images only for reference.

293D226X9020D2TE3

Name: 293D226X9020D2TE3
Brand: Vishay
SKU: 418032
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	293D226X9020D2TE3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	Cap Tant Solid 22uF 20V D CASE 10% (7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.7 Ohm 125°C T/R / CAP TANT 22UF 20V 10% 2917
Datasheet	293D226X9020D2TE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Capacitance	22μF
Tolerance	±10%
Voltage Rating	20V
Type	Molded
ESR	700 mOhm
Temperature Range - Operating	-55°C to 125°C
Mounting	SMD (SMT)
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max)	0.122" (3.10mm)
Manufacturer Size Code	D
Features	General Purpose
Win Source Part Number	1003717-293D226X9020D2TE3
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Industrial, Consumer Electronics, Portable Devices, Power Management
Family Name	293D
Introduction Date	October 27, 2004
ECCN	EAR99
Country of Origin	China, Israel
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian 293D226X9020D2TE3 CAD Model

Alternative Products

Description

The Vishay 293D series molded capacitor is a general-purpose capacitor that is designed to provide high capacitance.

Voltage Rating: 20V
Capacitance: 22μF
Tolerance: ±10%
ESR: 700 mOhm
Packaging: Reel - TR
Height (Seated): 0.122 inches (3.10mm)
Mounting Technology: SMD (SMT)
Operating Temperature Range: -55°C to 125°C
Applications: Industrial, consumer electronics, portable devices, and power management
Manufacturing Status: Actively manufactured
Estimated EOL Date: 2028
