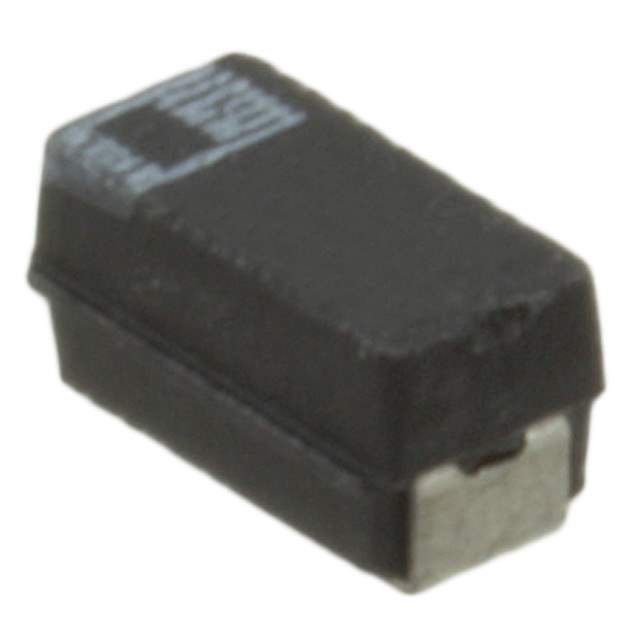

Same model may have multiple batches, images only for reference.

293D475X9020A2TE3

Name: 293D475X9020A2TE3
Brand: Vishay
SKU: 1328442
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	293D475X9020A2TE3
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 4.7UF 10% 20V 1206 / 4.7 µF Molded Tantalum Capacitors 20 V 1206 (3216 Metric) 5Ohm
Datasheet	293D475X9020A2TE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Tantalum Capacitors
Manufacturer	Vishay Sprague
Packaging	Reel - TR
Capacitance	4.7 µF
Tolerance	±10%
Voltage - Rated	20 V
Type	Molded
ESR (Equivalent Series Resistance)	5Ohm
Temperature Range - Operating	-55°C ~ 125°C
Mounting	Surface Mount
Case / Package	1206 (3216 Metric)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.071" (1.80mm)
Manufacturer Size Code	A
Features	General Purpose
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Part Number	718-1150-6,716-1150-1,716-1150-1-ND,718-1150-2,718-1150-1
Standard Package	2,000
Win Source Part Number	1328442-293D475X9020A2TE3
Ultra Librarian 3D Model	Ultra Librarian 293D475X9020A2TE3 CAD Model

Alternative Products

Description

The Vishay Sprague 293D series is a molded type, general-purpose tantalum capacitor designed for surface-mount technology.

Capacitance: 4.7μF
Tolerance: ±10%
Rated Voltage: 20V
Temperature Range: -55°C to 125°C
Series: TANTAMOUNT®
Case/Package: 1206 (3216 Metric)
Height: 0.071" (1.80mm)
Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
ESR (Equivalent Series Resistance): 5Ω
Lead Spacing: -
