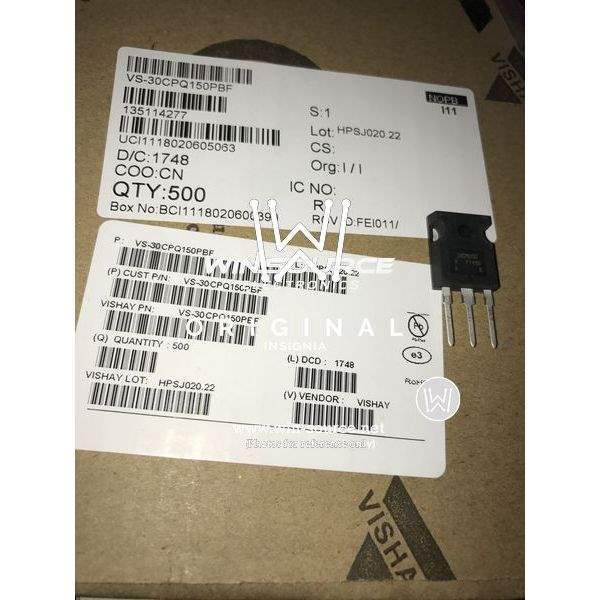

30CPQ150 Vishay 30CPQ150 Real Image 30CPQ150 real image
Same model may have multiple batches, images only for reference.
30CPQ150 Vishay 30CPQ150 Real Image 30CPQ150 real image
30CPQ150 Vishay 30CPQ150 Real Image 30CPQ150 real image
Same model may have multiple batches, images only for reference.

30CPQ150

Part No 30CPQ150
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description Rectifier Diode Schottky 150V 30A 3-Pin(3+Tab) TO-247AC / DIODE ARRAY SCHOTTKY 150V TO247
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 150V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 1V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 150V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-247AC
Win Source Part Number 075676-30CPQ150
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name 30CPQ150
Introduction Date April 19, 2007
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 30CPQ150 CAD Model

Description

Description

The 30CPQ150 is a high-efficiency Schottky rectifier diode designed to deliver optimum performance. It is known for its reliable low forward voltage drop and low leakage current. Ideal for various electronic applications, this diode ensures higher energy efficiency and long-term sustainability.

Features and Benefits

  • Low forward voltage drop, reducing power loss and improving efficiency
  • High-frequency operation capabilities
  • Low reverse leakage current
  • High surge current capability

Applications

  • Switch mode power supplies
  • DC to DC converters
  • High-frequency rectification
  • Freewheeling diodes
