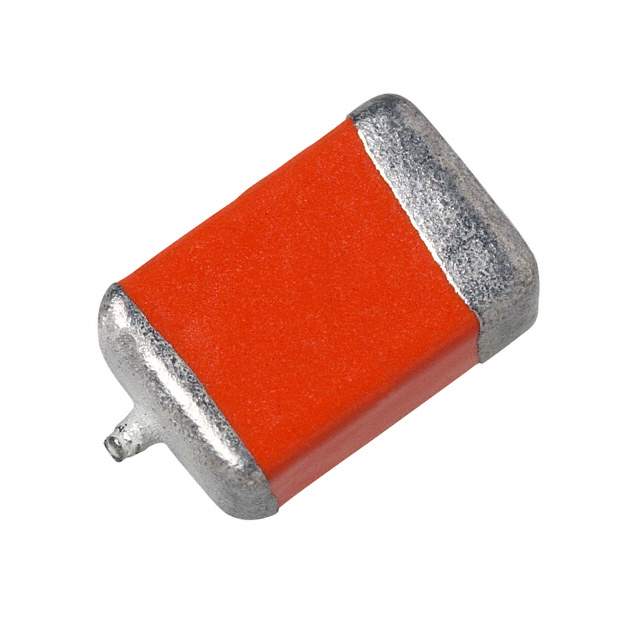

Same model may have multiple batches, images only for reference.

594D107X0016C2T

Name: 594D107X0016C2T
Brand: Vishay
SKU: 764115
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	594D107X0016C2T
Manufacturer	Vishay
Catalog	Tantalum Capacitors
Description	CAP TANT 100UF 16V 20% 2812
Datasheet	594D107X0016C2T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Vishay Sprague
Series	TANTAMOUNT, 594D
Packaging	Reel package
Capacitance	100μF
Tolerance	±20%
Voltage Rating DC	16V
Type	Conformal Coated
ESR (Equivalent Series Resistance)	80 mOhm
Operating Temperature Range	-55°C ~ 125°C
Mounting	SMD
Package	2812 (7132 Metric)
Dimension	0.280" L x 0.126" W (7.10mm x 3.20mm)
Height - Seated (Maximum)	0.110" (2.79mm)
Manufacturer Size Code	C
Features	General
Win Source Part Number	764115-594D107X0016C2T
Popularity	Medium
Supply and Demand Status	Limited
Family Name	594D
Introduction Date	April 12, 2006
ECCN	EAR99
Country of Origin	Israel
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 594D107X0016C2T CAD Model

Alternative Products

Description

The Vishay Sprague 594D107X0016C2T is a conformal coated TANTAMOUNT capacitor that is commonly used in electronic devices.

Series: 594D
Capacitance: 100μF
Supply and Demand: Limited
Operating Temperature: -55°C to 125°C
Voltage Rating DC: 16V
Package: 2812 (7132 Metric)
Dimensions: 0.280" L x 0.126" W (7.10mm x 3.20mm)
