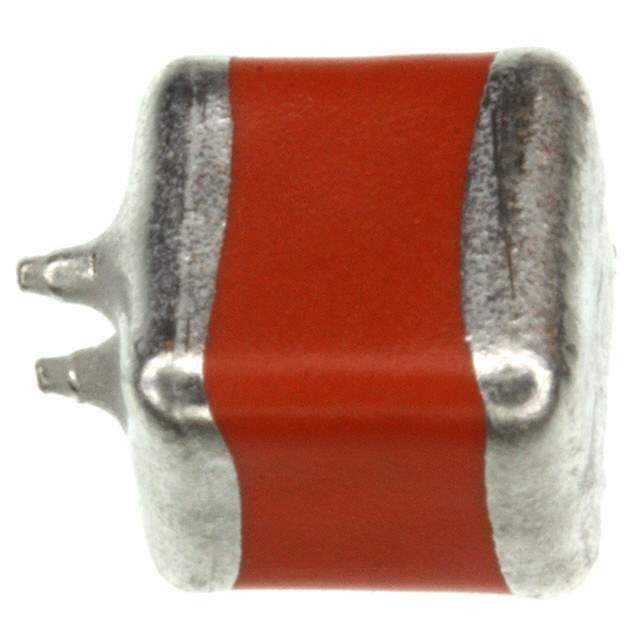

597D226X9050R2T Real Image
Same model may have multiple batches, images only for reference.

597D226X9050R2T

Part No 597D226X9050R2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 22UF 50V 10% 3024
Datasheet
597D226X9050R2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Vishay Sprague
Series TANTAMOUNT, 597D
Packaging Reel package
Capacitance 22μF
Tolerance ±10%
Voltage Rating DC 50V
Type Conformal Coated
ESR (Equivalent Series Resistance) 220 mOhm
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package 3024 (7660 Metric)
Dimension 0.299" L x 0.236" W (7.60mm x 6.00mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Manufacturer Size Code R
Features General
Win Source Part Number 764164-597D226X9050R2T
Popularity Medium
Supply and Demand Status Limited
Family Name 597D
Introduction Date October 10, 2006
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 597D226X9050R2T CAD Model

Description

The Vishay Sprague 597D226X9050R2T is a medium popularity electronic component from the TANTAMOUNT, 597D series.

  • Packaging: Reel
  • Type: Conformal Coated
  • Operating Temperature: -55°C ~ 125°C
  • Capacitance: 22μF
  • Tolerance: ±10%
  • ESR: 220 mOhm
  • Manufacturer Size Code: R
  • Dimension: 0.299" L x 0.236" W (7.60mm x 6.00mm)
  • Voltage Rating DC: 50V
