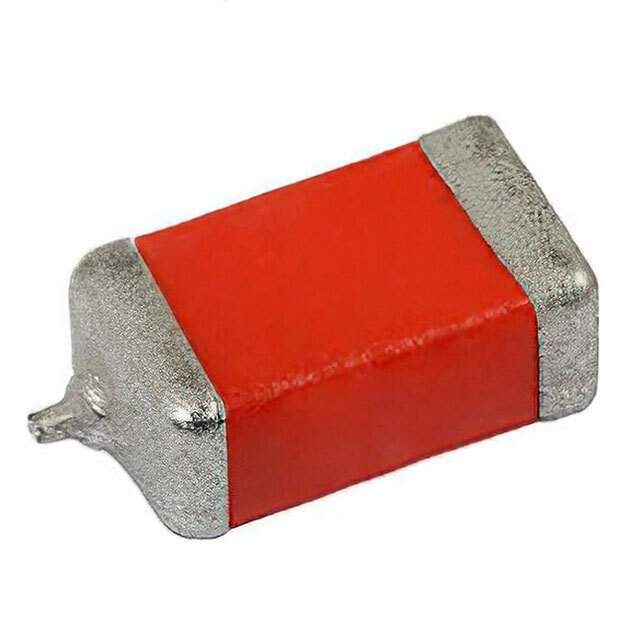

695D476X0020H2T Real Image
Same model may have multiple batches, images only for reference.

695D476X0020H2T

Part No 695D476X0020H2T
Manufacturer Vishay
Catalog Tantalum Capacitors
Description CAP TANT 47UF 20% 20V 3015 / 47 µF Conformal Coated Tantalum Capacitors 20 V 3015 (7038 Metric) 500mOhm
Datasheet
695D476X0020H2T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Tantalum Capacitors
Mfr Vishay Sprague
Series TANTAMOUNT®, 695D
Package Tape & Reel (TR)
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 20 V
Type Conformal Coated
ESR (Equivalent Series Resistance) 500mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 3015 (7038 Metric)
Dimension 0.303" L x 0.150" W (7.70mm x 3.81mm)
Height - Seated (Max) 0.125" (3.17mm)
Manufacturer Size Code H
Features General Purpose
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8532.21.0050
Standard Package 600
Win Source Part Number 990739-695D476X0020H2T
Ultra Librarian 3D Model Ultra Librarian 695D476X0020H2T CAD Model

Description

The 695D476X0020H2T tantalum capacitor from Vishay Sprague is a conformal-coated surface-mount capacitor that offers a capacitance of 47 µF with a tolerance of ±20%.

  • Voltage Rating: 20V
  • ESR (Equivalent Series Resistance): 500mOhm
  • Series: TANTAMOUNT®, 695D
  • Package: 3015 (7038 Metric)
  • Height: 0.125" (3.17mm)
  • RoHS: compliant
  • Temperature Range: -55°C to 125°C
  • Manufacturer Size Code: H
  • Packaging: tape and reel (TR) with 600 units
