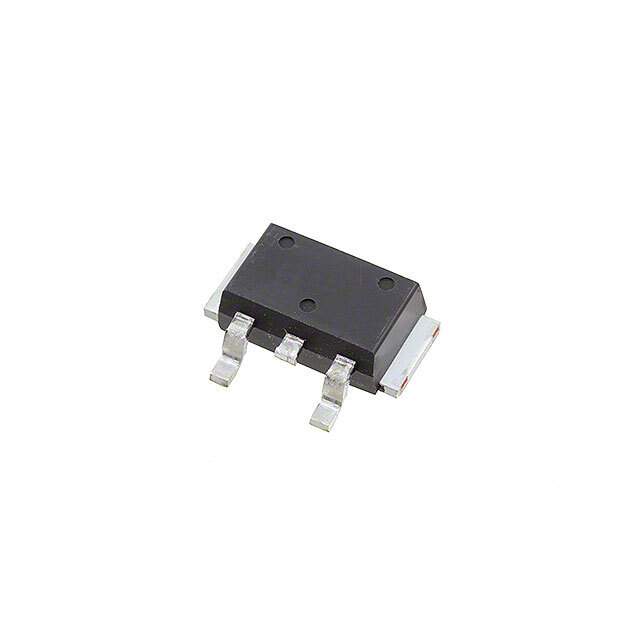

80CNQ045ASL Real Image
Same model may have multiple batches, images only for reference.

80CNQ045ASL

Part No 80CNQ045ASL
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description Schottky Power Surface Mount | DIODE ARRAY SCHOTTKY 45V D618SL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 45V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 520mV at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 5mA at 45V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package D-61-8-SL
Supplier Device Package D-61-8-SL
Family Part Number 80CNQ045
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1133832-80CNQ045ASL
Manufacturer Homepage www.microsemi.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 80CNQ045ASL CAD Model

Description

The 80CNQ045ASL is a fast recovery Schottky diode.

  • Maximum Forward Voltage Drop @ 40A: 520mV
  • Maximum DC Reverse Voltage: 45V
  • Average Rectified Current: 40A per diode
  • Diode Configuration: 1 pair common cathode
  • Package: D-61-8-SL
  • Packaging: Bulk
  • Mounting: SMD
  • Operating Temperature Range: -55°C to 150°C
  • Part Status: Obsolete
