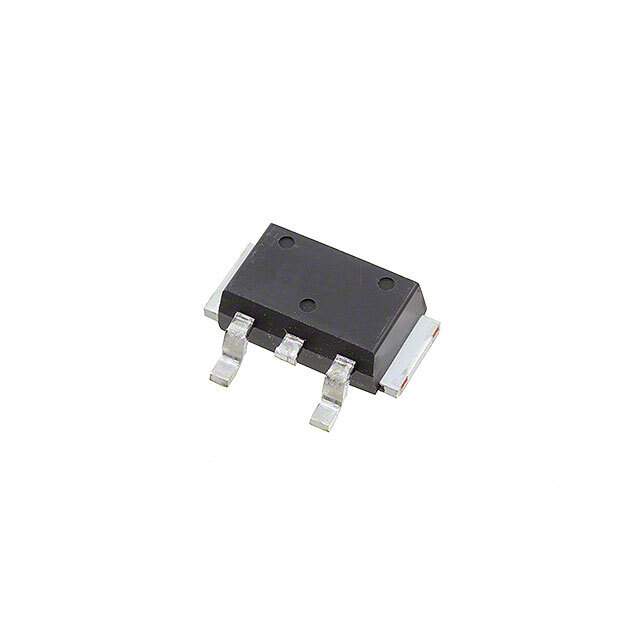

82CNQ030ASL Real Image
Same model may have multiple batches, images only for reference.

82CNQ030ASL

Part No 82CNQ030ASL
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 30V D618SL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 550mV at 80A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 5mA at 30V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package D-61-8-SL
Supplier Device Package D-61-8-SL
Family Part Number 82CNQ030
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1133934-82CNQ030ASL
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 82CNQ030ASL CAD Model

Description

The 82CNQ030ASL is a pair of common cathode Schottky diodes that are designed for use in applications that require a fast recovery speed.

  • Manufacturer: Vishay Semiconductor Diodes Division
  • Voltage Rating: 30V
  • Average Rectified Current (Io): 40A per diode
  • Package: Surface mount device (SMD)
  • Supplier Device Package: D-61-8-SL
  • Forward Voltage (Vf): 550mV @ 80A
  • Reverse Leakage Current: 5mA @ 30V
  • Applications: High-frequency switching applications, such as in power supplies, lighting, and motor control circuits
