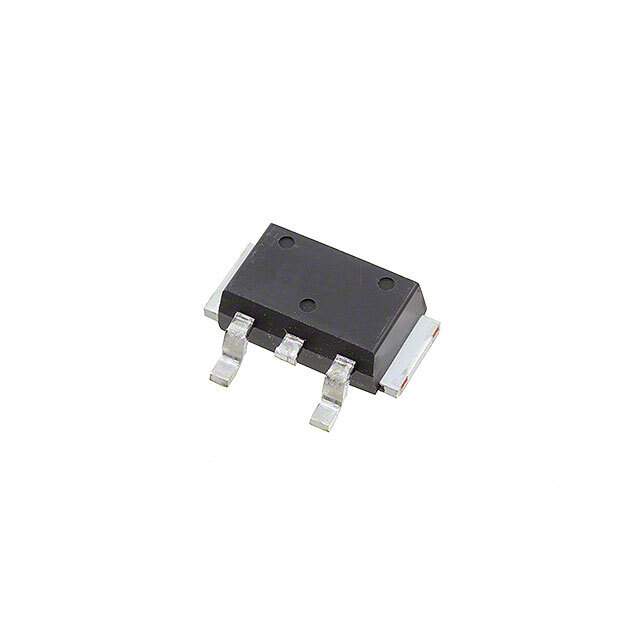

The 82CNQ030ASLPBF is a dual common cathode Schottky Rectifier manufactured by Vishay. This rectifier array is designed for high-frequency, high-efficiency applications where low forward voltage drop and fast switching speeds are crucial.

Applications

• Switching power supplies
• DC-DC converters
• Freewheeling diodes in inductive circuits
• Reverse polarity protection
• High frequency inverters

Features

• Dual Common Cathode Configuration: Two Schottky rectifiers in a single package, sharing a common cathode connection.
• Low Forward Voltage Drop: Minimizes power loss and improves efficiency.
• High Surge Current Capability: Designed to withstand high surge currents, enhancing reliability.
• Fast Switching Speed: Enables efficient operation in high-frequency applications.
• Lead-Free Finish: Compliant with RoHS standards, ensuring environmental friendliness.

Benefits

• Improved Efficiency: Low forward voltage drop reduces power dissipation, resulting in higher overall efficiency.
• Enhanced Reliability: High surge current capability and robust design ensure reliable operation under various conditions.
• Compact Design: Dual rectifier in a single package saves space and simplifies circuit layout.
• Simplified Thermal Management: Allows for efficient heat dissipation, contributing to stable performance.
• Environmentally Friendly: Lead-free finish complies with environmental regulations.

Additional Details

The 82CNQ030ASLPBF Schottky rectifier is commonly used in power supplies, converters, and other applications requiring efficient rectification. It features a repetitive peak reverse voltage of 30V and an average forward current of 2 x 41A. The 'LPBF' suffix indicates a lead-free finish. Consult the official Vishay datasheet for comprehensive electrical characteristics, including reverse leakage current, forward voltage drop, and thermal resistance. Proper thermal management is crucial for optimal performance and reliability in high-power applications.
