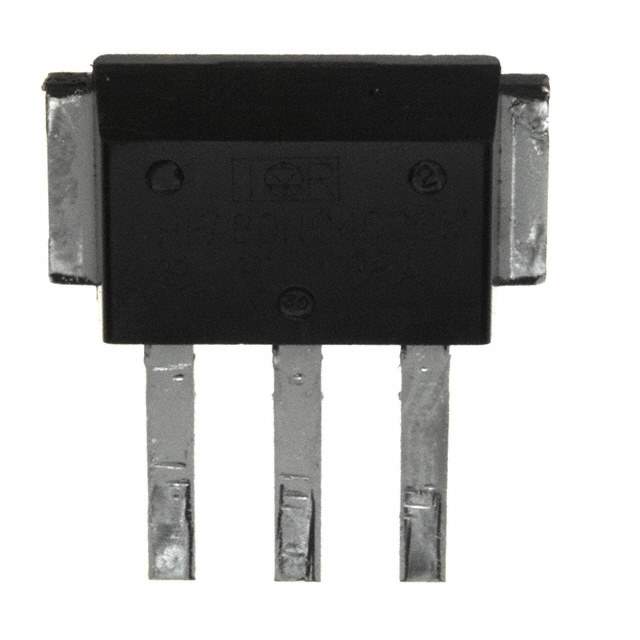

89CNQ135ASM Real Image
Same model may have multiple batches, images only for reference.

89CNQ135ASM

Part No 89CNQ135ASM
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY RECTIFIER | DIODE ARRAY SCHOTTKY 135V D618SM
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 135V
Current - Average Rectified (Io) (per Diode) 40A
Voltage - Forward (Vf) (Maximum) at If 990mV at 40A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 1.5mA at 135V
Operating Temperature - Junction -55°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package D-61-8-SM
Supplier Device Package D-61-8-SM
Family Part Number 89CNQ135A
Manufacturer Pack Quantity 20
MSL Level 1 (Unlimited)
Win Source Part Number 1134100-89CNQ135ASM
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 89CNQ135ASM CAD Model

Description

The Vishay Semiconductor Diodes Division 1134100-89CNQ135ASM is an electronic component that is used in discrete semiconductor products.

  • Diode Type: Schottky, fast recovery
  • Voltage: 135V
  • Supply and Demand Status: Limited
  • Manufacturer's Homepage: www.irf.com
  • Packaging: Bulk
  • Mounting Style: Through-hole
  • Current - Average Rectified (Io) (per diode): 40A
  • Voltage - Forward (Vf) (Maximum) @ If: 990mV @ 40A
  • Current - Reverse Leakage @ Vr: 1.5mA @ 135V
