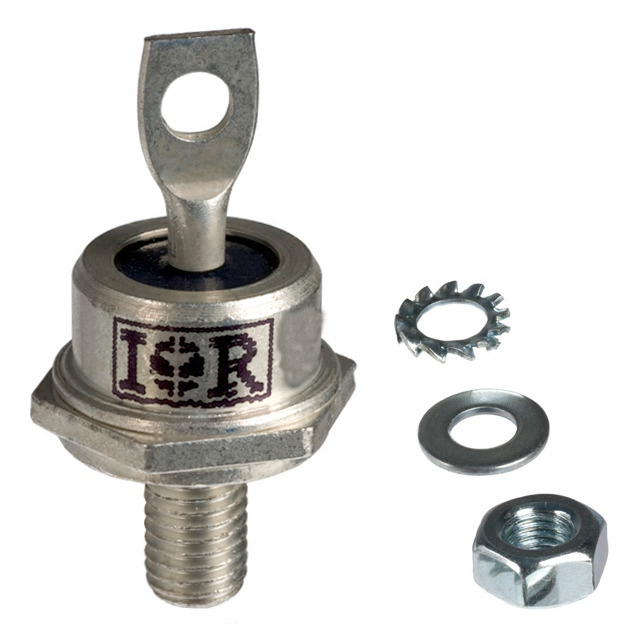

Same model may have multiple batches, images only for reference.
95HQ015 Vishay
Same model may have multiple batches, images only for reference.

95HQ015

Part No 95HQ015
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description SCHOTTKY RECTIFIER | DIODE SCHOTTKY 15V 95A DO203AB
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 15V
Current - Average Rectified (Io) 95A
Voltage - Forward (Vf) (Maximum) at If 460mV at 95A
Speed Fast Recovery = 200mA (Io)
Current - Reverse Leakage at Vr 20mA at 15V
Mounting Style Chassis, Stud Mount
Manufacturer Package DO-203AB, DO-5, Stud
Supplier Device Package DO-203AB
Operating Temperature - Junction -65°C ~ 100°C
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Win Source Part Number 1134289-95HQ015
Manufacturer Homepage www.irf.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 95HQ015 CAD Model

Description

The Schottky diode is a fast recovery component manufactured by Vishay Semiconductor Diodes Division.

  • Current Average Rectified (Io): 95A
  • Mounting Type: Chassis, Stud Mount
  • Voltage DC Reverse (Vr) (Maximum): 15V
  • Diode Type: DO-203AB
  • Case Style: DO-5 Stud
  • Status: Obsolete
  • Supply and Demand Status: Limited
  • Capacitance @ Vr, F: Not Specified
  • RoHS Compliant: Yes
  • MSL Level: 1 (Unlimited)
