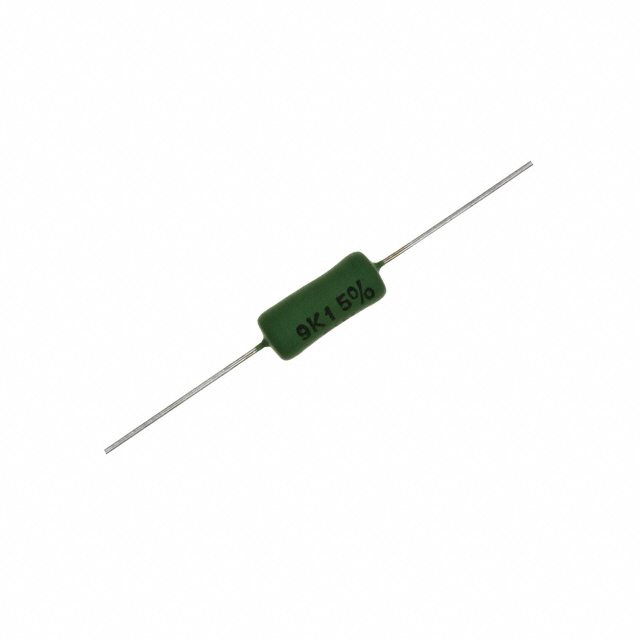

Same model may have multiple batches, images only for reference.
AC05000001809JAC00 Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

AC05000001809JAC00

Part No AC05000001809JAC00
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 18 OHM 5W 5% AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 18 Ohms
Tolerance ±5%
Power (Watts) 5W
Composition Wirewound
Features Flame Retardant Coating, Pulse Withstanding, Safety
Temperature Coefficient -10/ -80ppm/°C
Temperature Range - Operating -40°C ~ 275°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.295" Dia x 0.709" L (7.50mm x 18.00mm)
Number of Terminations 2
Package Cut Tape (CT)
Supply and Demand Status Limited
Win Source Part Number 1591294-AC05000001809JAC00
Ultra Librarian 3D Model Ultra Librarian AC05000001809JAC00 CAD Model
