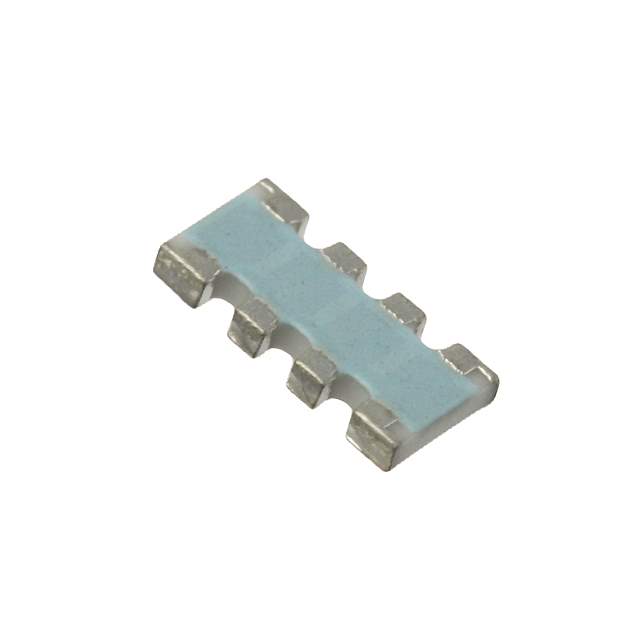

ACASA2002S2002P1AT Real Image
Same model may have multiple batches, images only for reference.

ACASA2002S2002P1AT

Part No ACASA2002S2002P1AT
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 20K OHM 1206 / 20k Ohm ±0.1% 125mW Power Per Element Isolated 4 Resistor Network/Array ±25ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
Datasheet
ACASA2002S2002P1AT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr Vishay Beyschlag/Draloric/BC Components
Series ACA - Precision
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 20k
Tolerance ±0.1%
Number of Resistors 4
Resistor Matching Ratio ±0.05%
Resistor-Ratio-Drift ±15ppm/°C
Number of Pins 8
Power Per Element 125mW
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200, Voltage Divider (TCR Matched)
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric) , Convex, Long Side Terminals
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1351642-ACASA2002S2002P1AT
Ultra Librarian 3D Model Ultra Librarian ACASA2002S2002P1AT CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components ACA - Precision resistor network array is a tape & reel packaged product with a size of 0.126" L x 0.059" W (3.20mm x 1.50mm).

  • Manufacturer: Vishay Beyschlag/Draloric/BC Components
  • Series: ACA - Precision
  • Package: Tape & Reel
  • Size: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Resistance: 20k ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Circuit Type: 4 Isolated
  • Number of Pins: 8
  • Power Per Element: 125mW
  • Mounting Type: Surface Mount
  • Package/Case: 1206 (3216 Metric), convex, long side terminals
  • Temperature Range: -55°C ~ 155°C
  • Resistor Matching Ratio: ±0.05%
  • Application: Automotive AEC-Q200 voltage divider (TCR matched)
