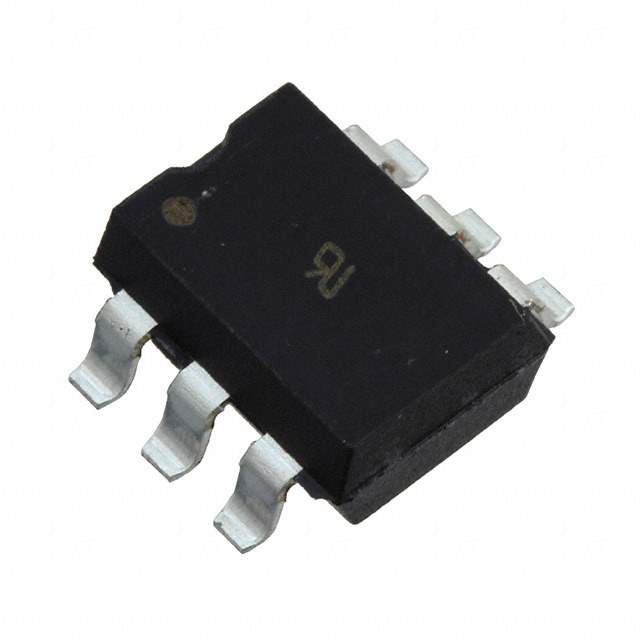

CNY17-1X007T Real Image
Same model may have multiple batches, images only for reference.

CNY17-1X007T

Part No CNY17-1X007T
Manufacturer Vishay
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SMD  /  Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Datasheet
CNY17-1X007T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Vishay Semiconductor Opto Division
Package Tape & Reel
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 40% @ 10mA
Current Transfer Ratio (Max) 80% @ 10mA
Turn On / Turn Off Time (Typ) 3µs, 2.3µs
Rise / Fall Time (Typ) 2µs, 2µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 70V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.39V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -55°C ~ 110°C
Mounting SMD (SMT)
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Base Product Number CNY17
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Other Names CNY17-1X007TDKR,CNY17-1X007TCT,CNY17-1X007T-ND,CNY17-1X007TTR
Standard Package 1,000
Win Source Part Number 1052880-CNY17-1X007T
Ultra Librarian 3D Model Ultra Librarian CNY17-1X007T CAD Model

Description

The Vishay Semiconductor Opto Division CNY17-1X007T is an optoisolator transistor that is designed to provide electrical isolation between two circuits.

  • Current Transfer Ratio: 40% @ 10mA
  • Maximum Voltage Isolation: 5000Vrms
  • Suitable for: Different electronic devices, including industrial automation, medical equipment, and consumer electronics
  • Alternative Part: Can be used in place of other similar components
  • Manufacturer: Vishay Semiconductor Opto Division
