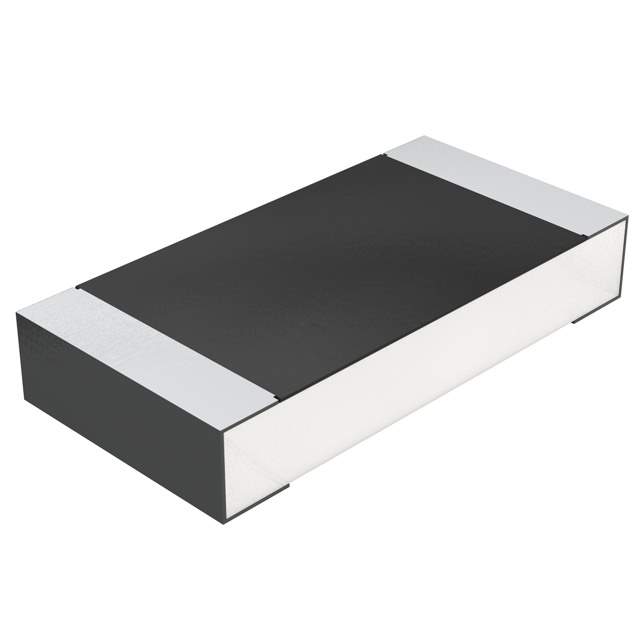

The CRCW12063K32FKEA is a thick film chip resistor designed for surface mounting on printed circuit boards. This resistor provides stable performance and reliability in a compact 1206 package. It is suitable for general-purpose applications requiring precise resistance and tolerance, but where a higher power rating than a 0805 is needed.

Applications:

• General-purpose electronics
• Voltage dividers
• Current limiting
• Pull-up/pull-down resistors
• Signal termination

Features:

• Small 1206 package size
• Thick film technology
• 3.32 kΩ resistance value
• 1% tolerance
• ±100 ppm/°C temperature coefficient
• Surface mount technology (SMT)

Benefits:

• Stable resistance value over a wide temperature range, ensuring accurate circuit performance.
• Compact size allows for high-density board designs, saving space and reducing overall system size.
• Precise resistance tolerance ensures accurate circuit operation.
• Easy to solder and assemble using standard SMT techniques, reducing manufacturing costs.
• RoHS compliant, ensuring environmentally friendly product design.

Additional Details:

The CRCW12063K32FKEA has a power rating of 0.25W. The maximum operating voltage is typically 200V. The resistor is constructed with a robust thick film resistive element. The 1206 package size is a standard dimension for surface mount components, ensuring compatibility with automated assembly equipment. Vishay's manufacturing processes ensure consistent quality and reliability. The resistor is designed to withstand harsh environmental conditions. The 1% tolerance ensures accurate resistance value for critical circuit applications.
