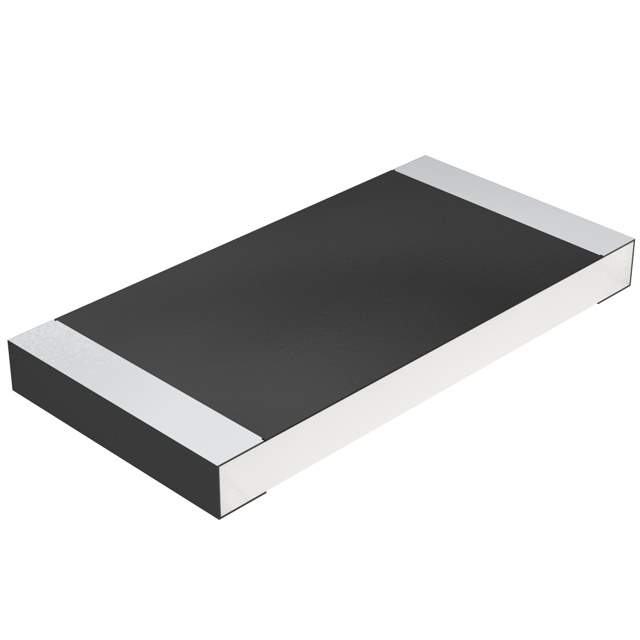

The CRCW25122000FR67 is a thick film chip resistor designed for surface mounting on printed circuit boards, providing stable performance and reliability in a larger 2512 package. This resistor is suitable for applications requiring higher power dissipation and precise resistance. The 2512 package provides improved power handling compared to smaller chip resistors.

Applications:

• Power supplies
• Automotive electronics
• Industrial control systems
• High-power circuits
• Current sensing

Features:

• Larger 2512 package size
• Thick film technology
• 200 Ω resistance value
• 1% tolerance
• ±100 ppm/°C temperature coefficient
• Surface mount technology (SMT)

Benefits:

• Higher power handling capability due to the larger package size.
• Stable resistance value over a wide temperature range, ensuring accurate circuit performance.
• Precise resistance tolerance ensures accurate circuit operation.
• Easy to solder and assemble using standard SMT techniques, reducing manufacturing costs.
• RoHS compliant, ensuring environmentally friendly product design.

Additional Details:

The CRCW25122000FR67 has a power rating of 1W. The maximum operating voltage is typically 200V. The resistor is constructed with a robust thick film resistive element. The 2512 package size is a standard dimension for surface mount components, ensuring compatibility with automated assembly equipment. Vishay's manufacturing processes ensure consistent quality and reliability. The resistor is designed to withstand harsh environmental conditions. The 1% tolerance ensures accurate resistance value for critical circuit applications. The larger size facilitates heat dissipation, making it suitable for higher power applications.
