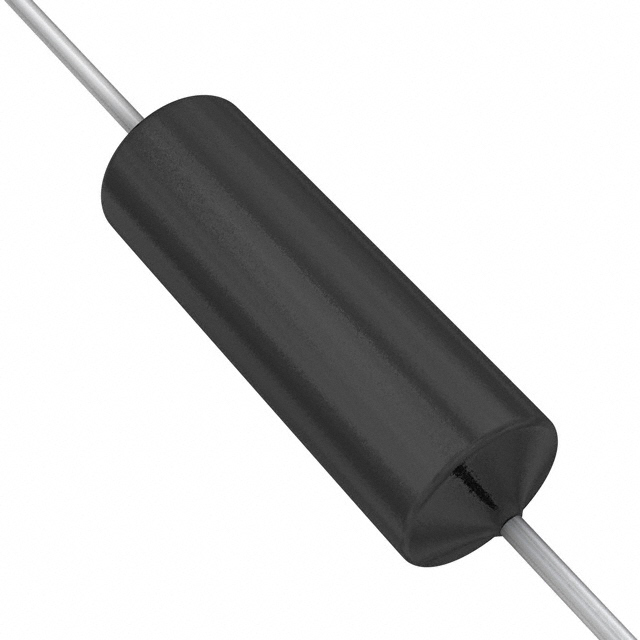

Same model may have multiple batches, images only for reference.
CW01056R00JE12HE Vishay – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CW01056R00JE12HE

Part No CW01056R00JE12HE
Manufacturer Vishay
Catalog Through Hole Resistors
Description RES 56 OHM 13W 5% AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 56 Ohms
Tolerance ±5%
Power (Watts) 13W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -65°C ~ 350°C
Case / Package Axial
Supplier Device Package Axial
Size / Dimension 0.375" Dia x 1.781" L (9.52mm x 45.24mm)
Number of Terminations 2
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1591464-CW01056R00JE12HE
Ultra Librarian 3D Model Ultra Librarian CW01056R00JE12HE CAD Model
