Same model may have multiple batches, images only for reference.

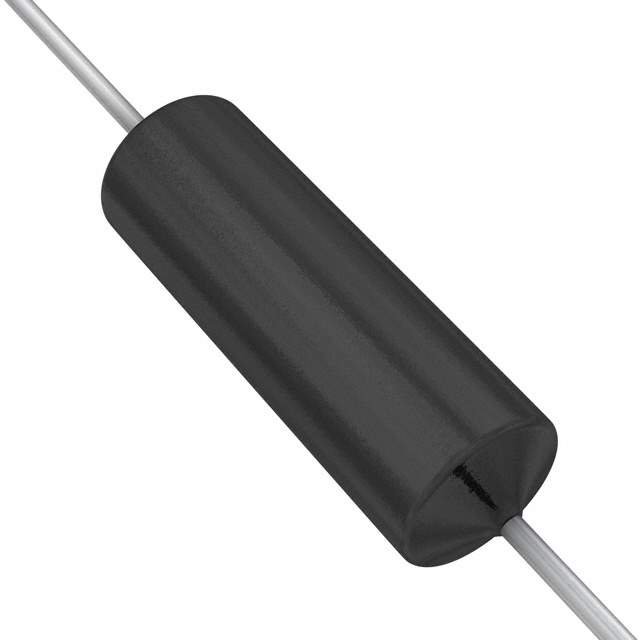

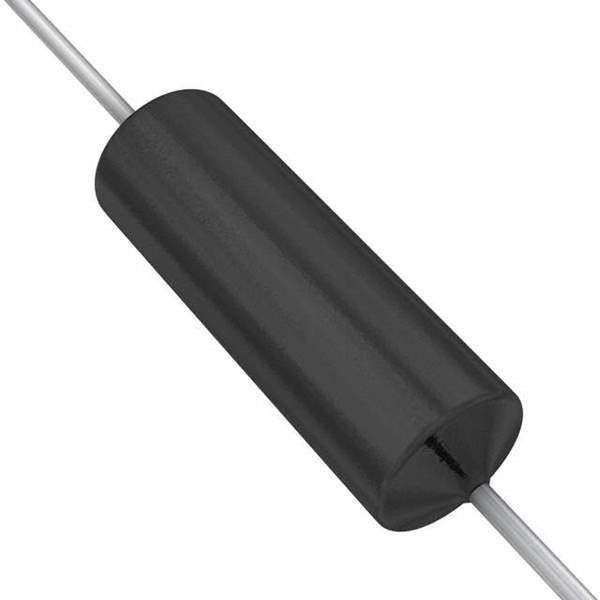

CW02B1R000JE12 Real Image
Same model may have multiple batches, images only for reference.

CW02B1R000JE12

Part No CW02B1R000JE12
Manufacturer Vishay
Catalog Through Hole Resistors
Description Resistor; Wirewound; Res 1 Ohms; Pwr-Rtg 3W; Tol 5%; Axial; Bulk
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package Ceramic
Composition Wirewound
Contact Plating Tin
Diameter 4.78 mm
Lead Diameter 813 µm
Length 15.8 mm
Max Operating Temperature 250 °C
Min Operating Temperature -65 °C
Mount Through Hole
Number of Pins 2
Packaging Bulk
Power Rating 3 W
Radiation Hardening No
REACH SVHC Unknown
Resistance 1 Ω
RoHS Compliant
Schedule B 8533210080, 8533210080
Temperature Coefficient 50 ppm/°C
Termination Axial
Tolerance 5 %
Weight 900.012311 mg
Win Source Part Number 1124651-CW02B1R000JE12
Categories Through Hole Resistors
Manufacturer Vishay
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CW02B1R000JE12 CAD Model

Description

The CW02B1R000JE12 is a through-hole resistor that is designed for use in various electronic applications.

  • Type: Wirewound
  • Package: Bulk
  • Termination: Axial
  • Length: 15.8mm
  • Diameter: 4.78mm
  • Tolerance: 5%
  • Temperature Coefficient: 50ppm/°C
  • Power Rating: 3W
  • Resistance: 1Ω
  • Case/Package: Ceramic
  • Operating Temperature: -65°C to 250°C
  • Manufacturer: Vishay
