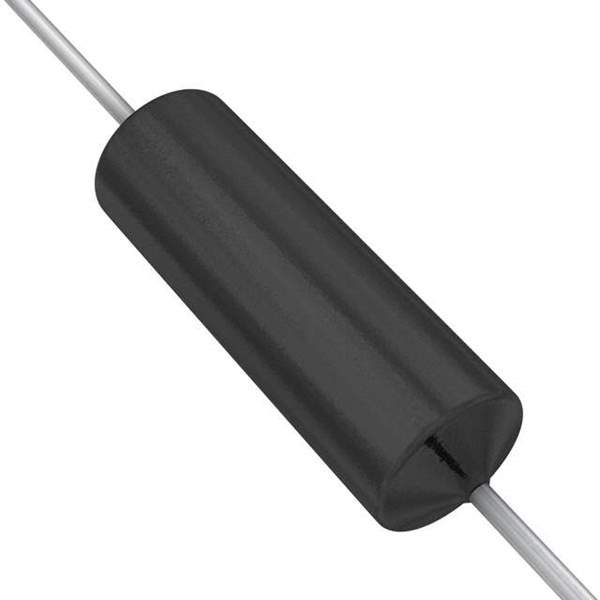

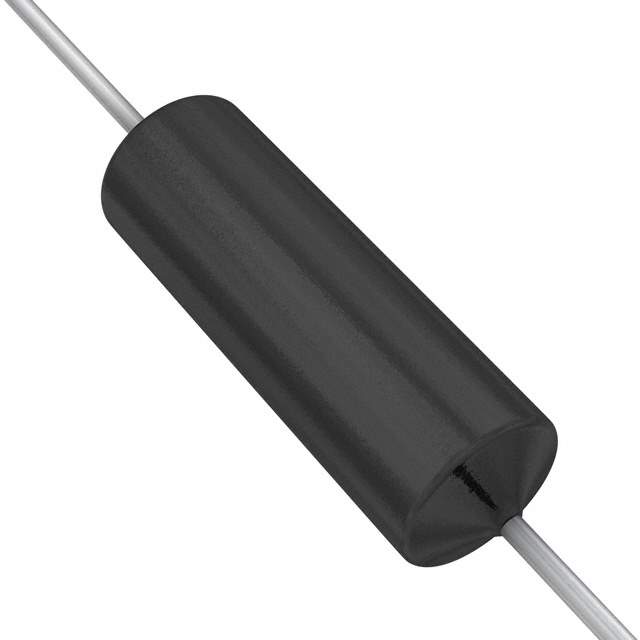

Same model may have multiple batches, images only for reference.

CW02B1R000JE12HS

Name: CW02B1R000JE12HS
Brand: Vishay
SKU: 1315763
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CW02B1R000JE12HS
Manufacturer	Vishay
Catalog	Through Hole Resistors
Datasheet	CW02B1R000JE12HS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Vishay Dale
Series	CW
Package	Bulk
Resistance	1 Ohms
Tolerance	±5%
Power (Watts)	3.75W
Composition	Wirewound
Features	Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±50ppm/°C
Temperature Range - Operating	-65°C ~ 350°C
Package / Case	Axial
Supplier Device Package	Axial
Dimension	0.188" Dia x 0.562" L (4.78mm x 14.27mm)
Number of Terminations	2
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8533.21.0080
Win Source Part Number	1315763-CW02B1R000JE12HS
Ultra Librarian 3D Model	Ultra Librarian CW02B1R000JE12HS CAD Model

Alternative Products

Description

The Vishay Dale CW02B1R000JE12HS resistor is a high-quality through-hole resistor with a resistance of 1 ohm.

Resistance: 1 ohm
Features: Moisture-Resistant, Withstand Pulses
Power Rating: 3.75W
Operating Temperature: -65°C to 350°C
Tolerance: ±5%
Temperature Coefficient: ±50ppm/°C
Composition: Wirewound
Terminations: 2
Package/Case: Axial
