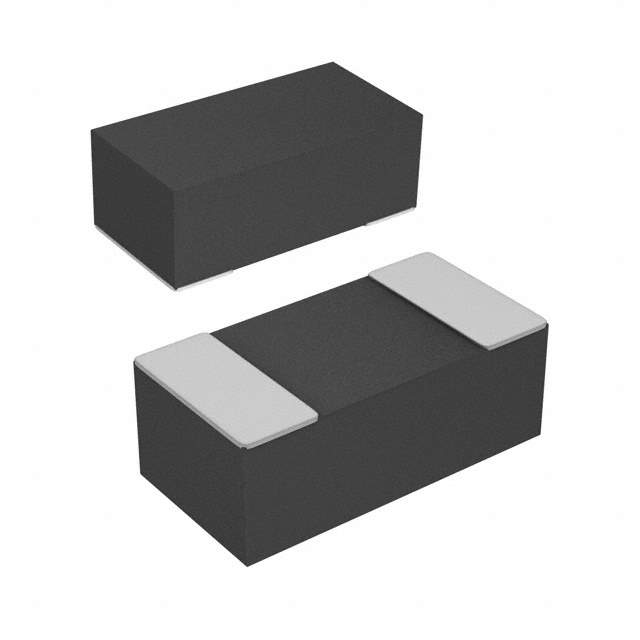

FC0402E15R0BTT0 Real Image
Same model may have multiple batches, images only for reference.

FC0402E15R0BTT0

Part No FC0402E15R0BTT0
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 15 OHM 0.1% 1/20W 0402 / 15 Ohms ±0.1% 0.05W, 1/20W Chip Resistor 0402 (1005 Metric) RF, High Frequency Thin Film
Datasheet
FC0402E15R0BTT0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale Thin Film
Series FC
Package Tape & Reel
Resistance 15 Ohms
Tolerance ±0.1%
Power (Watts) 0.05W, 1/20W
Composition Thin Film
Features RF, High Frequency
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.042" L x 0.022" W (1.07mm x 0.56mm)
Height - Seated (Max) 0.015" (0.38mm)
Number of Terminations 2
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1350339-FC0402E15R0BTT0
Ultra Librarian 3D Model Ultra Librarian FC0402E15R0BTT0 CAD Model

Description

The FC0402E15R0BTT0 is a chip resistor from Vishay Dale Thin Film.

  • Series: FC
  • Mounting Type: Tape & Reel
  • Features: RF and High Frequency
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power: 0.05W
  • Resistance: 15 Ohms
  • Package / Case: 0402 (1005 Metric)
  • Supplier Device Package: 0402
  • Standard Package: 100
  • Height - Seated (Max): 0.015" (0.38mm)
  • Operating Temperature: -55°C to 155°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8533.21.0030
