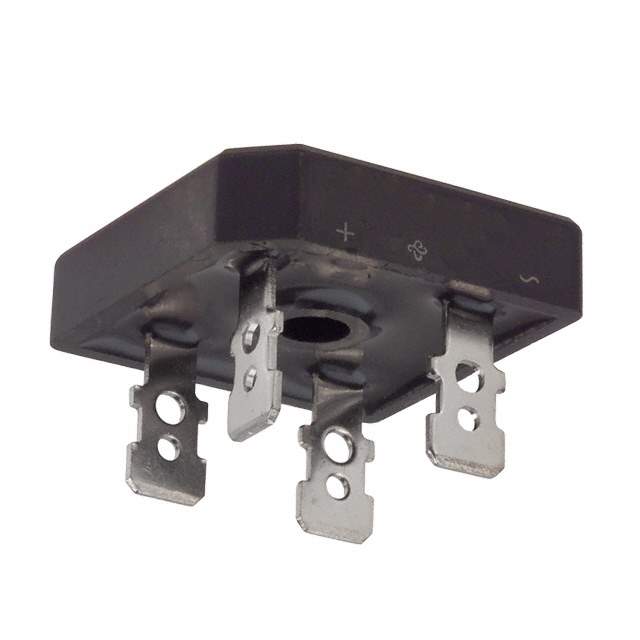

GBPC3504-E4/51 Real Image
Same model may have multiple batches, images only for reference.

GBPC3504-E4/51

Part No GBPC3504-E4/51
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 35A 400V GBPC / Diode Rectifier Bridge Single 400V 35A 4-Pin Case GBPC Bulk
Datasheet
GBPC3504-E4/51 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 35A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 17.5A
Current - Reverse Leakage @ Vr 5μA @ 400V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, GBPC
Manufacturer Package GBPC
Win Source Part Number 775005-GBPC3504-E4/51
Popularity Medium
Supply and Demand Status Limited
Family Name GBPC3504
Introduction Date January 05, 1990
ECCN EAR99
Country of Origin China
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian GBPC3504-E4/51 CAD Model

Description

The Vishay Semiconductor Diodes Division GBPC3504-E4/51 is a single-phase diode with a peak reverse voltage of 400V and an average rectified current of 35A.

  • Package: 4-Square, GBPC
  • Mounting Style: QC terminal
  • Temperature Range: -55°C to 150°C (TJ)
  • Technology: standard
  • Popularity: medium
