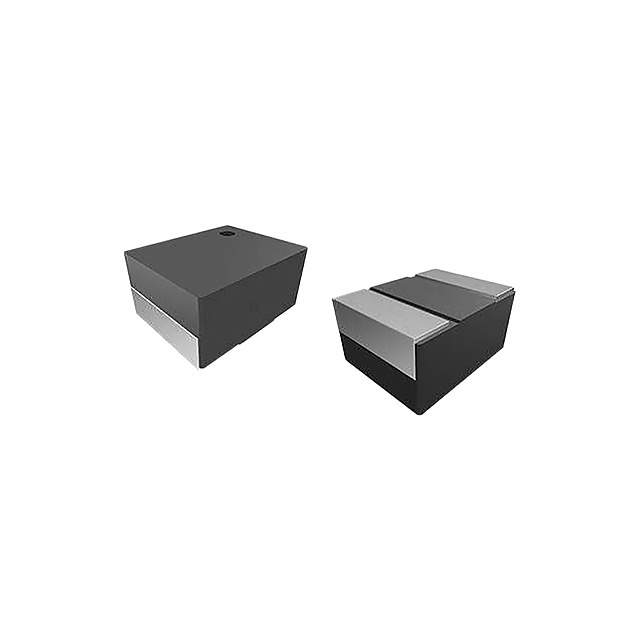

IHHP0806AZER2R2M01

Name: IHHP0806AZER2R2M01
Brand: Vishay
SKU: 1083448
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	IHHP0806AZER2R2M01
Manufacturer	Vishay
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 2A 158 MOHM SMD / 2.2 µH Shielded Inductor 2 A 158mOhm Max Nonstandard
Datasheet	IHHP0806AZER2R2M01 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Vishay Dale
Series	IHHP-0806AZ-01
Package	Tape & Reel
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	2 A
Current - Saturation (Isat)	2.1A
Shielding	Shielded
DC Resistance (DCR)	158mOhm Max
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)	0.039" (1.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	541-2648-1,541-2648-2,541-2648-6
Standard Package	3,000
Win Source Part Number	1083448-IHHP0806AZER2R2M01
Ultra Librarian 3D Model	Ultra Librarian IHHP0806AZER2R2M01 CAD Model

Alternative Products

Description

The Vishay Dale IHHP0806AZER2R2M01 is a fixed inductor that belongs to the Inductors, Coils, Chokes category.

Package: Tape and reel
Shielding: Shielded
Inductance: 2.2 µH
DC Resistance (DCR): 158mOhm Max
Current Rating: 2 A
Inductance Frequency of Test: 100 kHz
Temperature Range for Operating: -55°C ~ 125°C
